Product Details:
|
| Materials: | Polypropylene(PP), Reinforced Polypropylene(RPP), Reinforced Nylon 6, Reinforced Nylon 66… | Type: | Floatation Ball |
|---|---|---|---|
| Diameter: | 20-100mm | Bulk Weight: | 48-85kg/m3 |
| Color: | Origin Color Or As Required | Void Rate: | 94% |
| Life Span: | 3 Years | Application: | Industry, Tower Packing |
| High Light: | plastic tower packing,tellerette random packing |
||

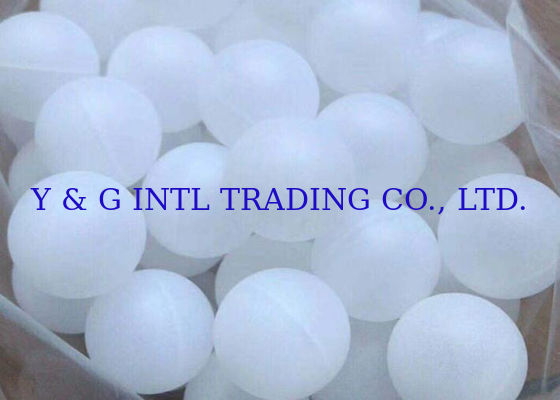

Floating Ball for Tower Packing Plastic Hollow Ball Dia.50/80/100mm
Plastic Hollow Floatation Ball help control heat loss, evaporation, and help with odor and mist control. Hollow balls also used as a check-valve ball in flow control applications.
It is made from heat resistant and chemical corrosion resistant plastics. It has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60 to 150.
Materials: Polypropylene(PP), Reinforced Polypropylene(RPP), Polyethylene (PE), Polyvinylchloride (PVC), Corzan (CPVC), Kynar (PVDF)Reinforced Nylon 6, Reinforced Nylon 66, …
| Model | Specification(mm | Operating temperature | Compression strength Mpa |
Packing Amount n/m3 |
Porosity% | Coverage rate% | PH | Acid proof degrees |
| Hollow boundless floating ball | 40 | ≤120 | 0.4 | 710 | 95 | 91 | 1-4 | 36% strong hydrochloric acid |
| Hollow floating ball with edge | 25 | ≤120 | 0.4 | 1560 | 95 | 98 | 1-4 | |
| 40 | ≤120 | 0.4 | 690 | 93 | 97 | 1-4 | ||
| 80 | ≤120 | 0.4 | 235 | 98 | 99 | 1-4 | ||
| Solid boundless floating ball | 40 | ≤120 | 0.4 | 710 | 95 | 91 | 1-4 | |
| Solid floating ball with edge | 40 | ≤120 | 0.4 | 680 | 96 | 97 | 1-4 |
Dimensions:
| Size mm |
Surface area (m²/m³) | Free volume (%) | Number per m³ | Bulk density (kg/m³) |
| Φ20 | 210 | 39 | 165000 | 165 |
| Φ25 | 200 | 40 | 41500 | 120 |
| Φ38 | 158 | 40 | 22000 | 100 |
| Φ50 | 120 | 40 | 10500 | 84 |
| Φ80 | 113 | 45 | 1800 | 75 |
| Φ100 | 106 | 47 | 1000 | 40 |
Applications: It is widely used in packing towers in oil industry, coal gas industry, chemical industry, environment protection and so on.
