Product Details:
|
| Materials: | Polypropylene(PP), Reinforced Polypropylene(RPP), Reinforced Nylon 6, Reinforced Nylon 66… | Plastic Modling Type: | Injection, Extruding. |
|---|---|---|---|
| Diameter: | 28-76mm | Bulk Weight: | 48-85kg/m3 |
| Color: | Origin Color Or As Required | Void Rate: | 94% |
| Life Span: | 3 Years | Application: | Industry, Tower Packing |
| High Light: | plastic tower packing,tellerette random packing |
||

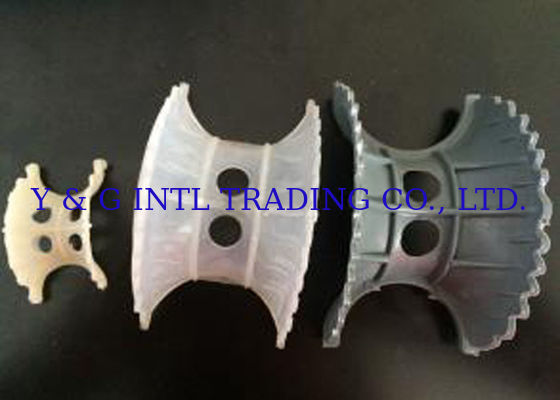

High Void Ratio Plastic Random Packings With Sufficient Gas Liquid Contact
Plastic Super Saddle Ring (Equivalent to Koch-Glitsch SUPER INTALOX) are a versatile and economical industry standard with well-known performance characteristics. Low pressure drop, high flux, high efficiency , easy to handle.
Material:Polypropylene(PP), Reinforced Polypropylene(RPP), Reinforced Nylon 6, Reinforced Nylon 66…
Performance:
Good Capacity and Low Pressure Drop
Higher capacity and lower pressure drop than ceramic saddles.
Multiple sizes provide ability to optimize capacity and efficiency based on application requirements.
Higher Liquid Hold-up and Residence Time
Relatively high liquid hold-up allows good absorption efficiency with slow chemical reaction.
Versatile Standard Packing
Lower sensitivity to liquid and vapor distribution quality allows use with conventional liquid distributors.
Specification of Plastic Super Saddle Ring:
| Diameter (mm) |
Size (mm) D1x D2 x H x t |
Surface Area (m2/m3) |
Void Rate (m3/m3) |
Number PCE/M3 |
Weight Kg/M3 |
Dry Packing Factor (m-1) |
| 25 | 25×38x19x1.2 | 207 | 0.90 | 55000 | 81 | 284 |
| 38 | 38×60x30x1.2 | 140 | 0.92 | 17000 | 72 | 180 |
| 50 | 50x80x40x1.5 | 108 | 0.93 | 6700 | 60 | 134 |
| 76 | 76x114x57x2.5 | 89 | 0.94 | 1500 | 52 | 107 |
Applications: Absorption, scrubbing, and stripping services; Pulp and paper service, such as bleach plant absorbers; Versatile alternative to ceramic saddles.
