Large Active Surface Tri Pak Packing , Plastic Jaeger Tri Packs For Biological Filtration

Large Active Surface Tri Pak Packing , Plastic Jaeger Tri Packs For Biological Filtration
Large Active Surface Tri Pak Packing , Plastic Jaeger Tri Packs For Biological Filtration Large Active Surface Tri Pak Packing , Plastic Jaeger Tri Packs For Biological Filtration Large Active Surface Tri Pak Packing , Plastic Jaeger Tri Packs For Biological Filtration Large Active Surface Tri Pak Packing , Plastic Jaeger Tri Packs For Biological Filtration Large Active Surface Tri Pak Packing , Plastic Jaeger Tri Packs For Biological Filtration

Large Image :  Large Active Surface Tri Pak Packing , Plastic Jaeger Tri Packs For Biological Filtration

Product Details:
Brand Name: Y&G
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: In pallets, wooden cases or weave strips as required.
Delivery Time: 25~35days
Supply Ability: 8000mt per month

Large Active Surface Tri Pak Packing , Plastic Jaeger Tri Packs For Biological Filtration

Description
Materials: Polypropylene(PP), Reinforced Polypropylene(RPP), Reinforced Nylon 6, Reinforced Nylon 66… Plastic Modling Type: Injection, Extruding.
Diameter: 28-76mm Bulk Weight: 48-85kg/m3
Color: Origin Color Or As Required Void Rate: 94%
Life Span: 3 Years Application: Industry, Tower Packing
High Light:

plastic tower packing

,

tellerette random packing

Large Active Surface Area Plastic Tri Pack Media For Biological Filtration

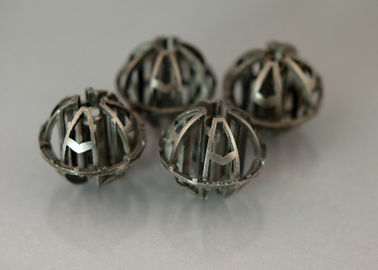

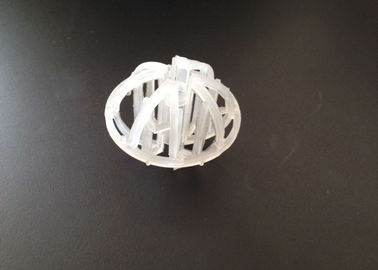

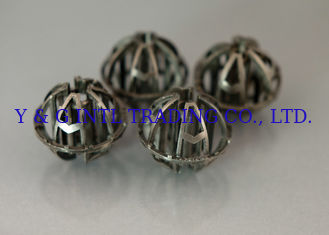

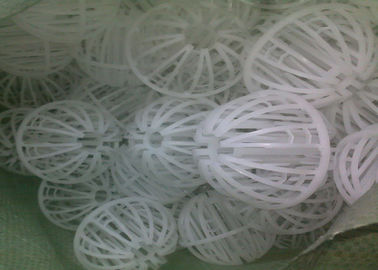

Plastic Tri-Packs is a hollow spherical shaped packing made of injection moulded plastic in four sizes: 1”, 1 1/4”, 2”and 3 1/2”diameter.

Its symmetrical geometry made from a unique network of ribs, struts and drip rods yields unprecedented performance. It has high void space, greater than packings of comparable size, and achieves superior pressure drop values, up to 90% reduction, as compared to other products. The packing has a high ACTIVE surface area, exposing all of its surface area to be fully wetted during column operation. The performance capabilities of plastic Tri-Packs have resulted in significant savings in hundreds of packed column operations.



Materials: Polypropylene(PP), Reinforced Polypropylene(RPP), Polyethylene (PE), Polyvinylchloride (PVC), Corzan (CPVC), Kynar (PVDF)Reinforced Nylon 6, Reinforced Nylon 66, …



Properties of Tri-Packs Tower Packing
Size (inches) 1" 1-1/4" 2" 3-1/2"
Geometric Surface Area (ft2 ft3) 85 70 48 38
Packing Factor I/ft 28 25 16 12
Void Space % 90 92 93 95
Weight (lb/ft3) 6.2 5.6 4.2 3.3



Mass Transfer Data of Tri-Packs:

Absorption System G
(lb./hr. ft2)
L
(lb./hr. ft2)
Temp
(F°)
HTU (inches)
2" & 3-1/2"
HTU (inches)
1"
HCl-H2O 1792 2048 77 10.6 7.0
HCl-NaOH 1567 2048 68 8.8 6.1
Cl2-NaOH 1229 2202 122 14.5 9.9
NH3-N2SO4 492 1024 68 6.0 4.1
NH3-H2O 512 1024 68 8.4 5.6
NH3-H2O 512 4096 68 5.4 3.6
SO2-NaOH 1946 4096 140 12.0 8.1
HF-H2O 1844 3072 77 6.9 4.6
CH2COCH3-H2O 1700 860 68 15.2 10.2
H2S-NaOH 1229 1331 68 19.4 13.0



VOC Stripping G
(lb./hr. ft2)
L
(lb./hr. ft2)
Temp
(F°)
HTU (inches)
2" & 3-1/2"
HTU (inches)
1"
TCE(ppm)-H2O 479 12264 77 26.9 21.5
TCE(ppm/ppb)-H2O 690 12494 60 37.6 30.1
BTX(ppb)-H2O 722 4998 70 39.2 31.4



Benefits: Highest mass and/or heat transfer rate;Extremely low pressure drop;Resists plugging, nesting and wall channelling;Highest flooding point and lowest wetting point;Even gas and liquid distribution;No interlocking or meshing;No interlocking or meshing;Used as a mist eliminator.



Application: Widely used in petroleum and chemical industries, alkali chloride industries, gas industries and environmental protection industries with max. Temperature of 150 degree centigrade.
