Astm B163 Monel 400 U Bend Tube Seamless Stainless Steel Coil Tubing

ASTM B163 Monel 400 U bend seamless stainless steel tube coil tubing U TUBE

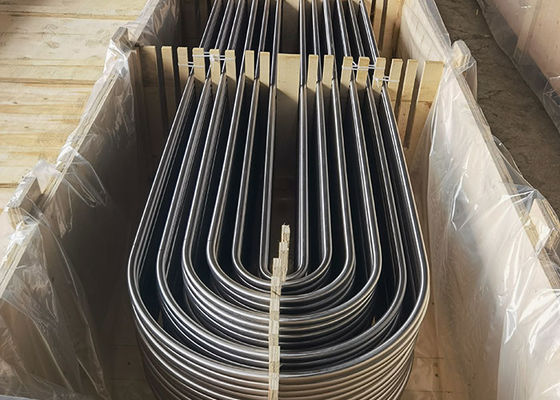

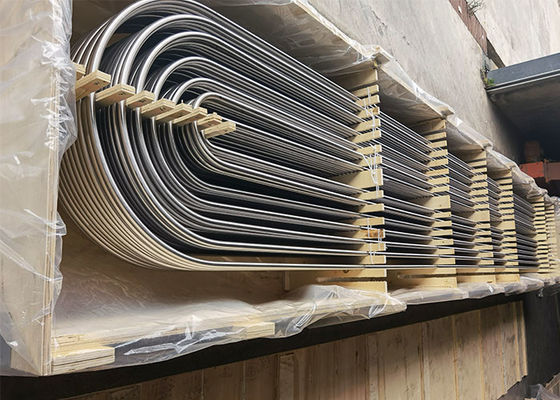

U Bending Tube

As the both ends fixed on the same tube sheet, the shell and the tube are separated so the U-type heat exchange can not thermal expanse, and the tube bundle can free stretch out and draw back, and cannot produce temperature stress due to the fluid temperature difference. The U-shaped bend is adopting hydraulic drive, bend, PLC control and pipe clamp to complete automatically. The synchronization of the cantilever and elbow movement , effectively prevents pipe sag in the bending process and adjusts speed in the process of operation. Using encoder positioning can ensure the Angle is precise, and can be set freely. In the process of running, it can not only display the movement, but also can display an error message, to help correct the operation and debug troubles, in order to ensure the safety of the operator and device and put an end to the hidden trouble of the production.

Austenitic: 304/L/H/N,316/L/H/N/Ti,321/H,309/H,310S,347/H,317/L904L

Duplex steel: 31803,32205,32750,32760

Nickel Alloy:

UNS N10001, N10665, N10675, N06455, N06022, N10276, N06200, N06035, N06030, N06635, N10003, N06002, R30188, N06230, R30556

UNS N06600, N06601, N06617, N06625, N07718, N07750, N08800, N08810, N08811, N08825, N09925, N08926

UNS N04400, N05500

Precipitation-hardening Steels: 254SMO/S31254, 17-4PH, 17-7PH, 15-7PH

Nickel: N4/UNS N02201, N6/UNS N02200

Testing Items:

1. Appearance Inspection;

2. Dimensional Inspection;

3. Chemical Composition Testing;

4. Mechanical Properties Testing;

5. PWHT (Solution Annealing) of U-Bend+300mm of straight length after Bending at about 680 C Holding time 5 to 7 Seconds.

6. 100% Hydrostatic test after Bending;

7. According to client’s requirement...

Application: Boiler tube applies to petroleum, chemical industry, electric power, boiler, high temperature resistant, low temperature resistant, corrosion-resistant. The size can be made according to the customer's requirements. A high-pressure boiler pipe applies to the container, petrochemical, and so on. Note: Generally, high-pressure boiler pipe’s working pressure above 9.88Mpa and working temperature between 450 to 650.
