Plastic Wire Gauze Structured Packing Column PP/RPPPVD/PVDF/PTFE PVDF Material

Plastic Wire Gauze Structured Packing Column PP/RPPPVD/PVDF/PTFE PVDF Material
Plastic Wire Gauze Structured Packing Column PP/RPPPVD/PVDF/PTFE PVDF Material Plastic Wire Gauze Structured Packing Column PP/RPPPVD/PVDF/PTFE PVDF Material Plastic Wire Gauze Structured Packing Column PP/RPPPVD/PVDF/PTFE PVDF Material Plastic Wire Gauze Structured Packing Column PP/RPPPVD/PVDF/PTFE PVDF Material Plastic Wire Gauze Structured Packing Column PP/RPPPVD/PVDF/PTFE PVDF Material

Large Image :  Plastic Wire Gauze Structured Packing Column PP/RPPPVD/PVDF/PTFE PVDF Material

Product Details:
Brand Name: Y&G
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: In pallets, wooden cases or weave strips as required.
Delivery Time: 30days
Supply Ability: 2000t per month

Plastic Wire Gauze Structured Packing Column PP/RPPPVD/PVDF/PTFE PVDF Material

Description
Material: PP,RPP,PVD,PVDF,PTFE PVDF. Dimensions: Customzied
Color: Depend On Material Type: Structured Packing
Surface Area: 125-500m2/m3 Application: Desulfurize Tower Packing
High Light:

packed distillation column

,

plate distillation column

Plastic Wire Gauze Structured Packing Column PP/RPPPVD/PVDF/PTFE PVDF Material

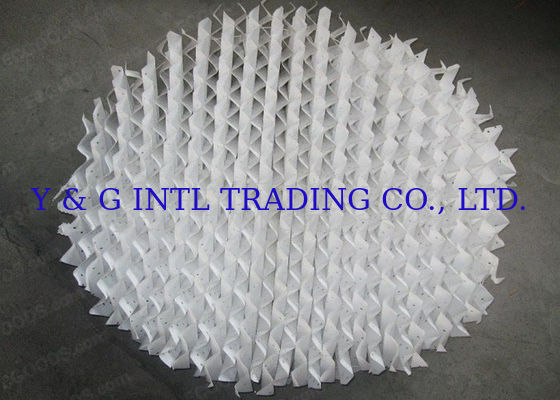

Plastic wire gauze packings is made from admixture knit mesh of Polypropylene wire and Polyacrylonitrile wire, therefore it has good chemical stability. The packing is prepared in 150-250mm cylinders and should be fully filled on the tower section. The packing is corrosion resistant and light(only 120kg per cubic meter).



Technical data:

Type Material

Wire Size

(mesh)

Peak

(mm)

Obliquity

(Degree)

Specific Surface Area

(m2/m3)

Void Volume

(m3/m3)



Density

(Kg/m3)

500(BX) PP/Polyacrylonitrile 40 6.3 30 450 0.85 120
624 PP/Nylon 40 4.5 45 624 0.96 120
450 PP/Nylon 40 6.2 30 450 0.97 120



Feature:
1. Mihnimum pressure drop,typically 2-4 mbar/m
2. Self-wetting packing surface
3. Low liquid load
4. Large number of transfer unit per meter
5. Operating temperature up to 80 degree

Application:
The packing is suitable for absorbing process with pressure 0.1-100Kpa under normal temperature and countercurrent flow reclaiming process with low liquid spray loading e.g. purification of waste gas, etc. It is usually used in low temperature (lower than 80℃) to absorb NH3, HCl and SO2 or water soluble solvents like acetone, acrylonitrile, methanol, alcohol, methanal, etc, as well as in the absorption of strong off odor matter like amine, thioalcohol and so on. Consequently it has a good effect in environmental protection field.



Plastic Wire Gauze Structured Packing Column PP/RPPPVD/PVDF/PTFE PVDF Material 0
