Product Details:
|
| Material: | Q235B/304, 0Cr13Ni5Mo/Q235A， 0Cr13Ni5Mo/16Mn | Standard: | ASTM A263-1991，ASTM A264-2003 |
|---|---|---|---|
| Width: | 1500-4020mm Or Customised | Thickness: | 3-50mm Or Customised |
| Technique: | Cold Rolled Hot Rolled | Packing: | Standard Sea-worthy Packing |
| High Light: | stainless steel sheet,copper sheet plate |
||

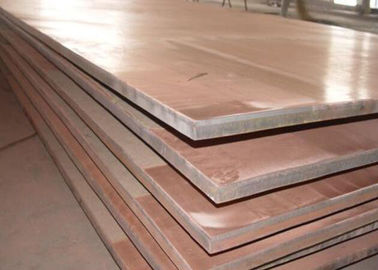

High Tensile Claded Stainless Steel Plate Wear Resistant Plate With Corrosion Resistance
Claded Plate is refers to, more than a single or multiple steel steel through, such as: stainless steel claded plate is use the process, such as explosion, or explosion of rolling rolling stainless steel plate with ordinary steel (carbon structural steel, high strength low alloy structural steel, quality carbon structural steel, etc.) of claded plate.It has the characteristics of two different kinds of steel, including corrosion resistance of stainless steel, low price of ordinary steel and good rigidity.The claded plate is designed to protect the ordinary steel plate from corrosion. It can be used for plating, adhesion and spraying, and a protective coating on the surface of the steel plate to form a claded plate.
Standard: ASTM A263-1991,ASTM A263-2003,ASTM A263-2009,ASTM A264-1991,ASTM A264-2003,ASTM A265-1991,ASTM A265-2003
Size Range:
Thickness: 8 mm - 300 mm
Width : 1500 mm - 4020 mm
Length: 3000 mm - 18000 mm
The maximum weight of steel plate is 25 tons.
Chemical Composition & Mechanical Property:
| C | Mn | P | S | Si | Cr | Ni | Mo | |
| TP304 | 0.08 | 2.00 | 0.045 | 0.03 | 1.00 | 18.00-20.00 | 8.00-11.00 | |
| TP304L | 0.035 | 2.00 | 0.045 | 0.03 | 1.00 | 18.00-20.00 | 8.00-11.00 | |
| TP316 | 0.08 | 2.00 | 0.045 | 0.03 | 1.00 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 |
| TP316L | 0.035 | 2.00 | 0.045 | 0.03 | 1.00 | 16.00-18.00 | 10.00-15.00 | 2.00-3.00 |
| TP321 | 0.08 | 2.00 | 0.045 | 0.03 | 1.00 | 17.00-19.00 | 9.00-12.00 | |
| TP347H | 0.08 | 2.00 | 0.045 | 0.03 | 1.00 | 17.00-19.00 | 9.00-12.00 |
| Standard | Material | Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) | Hardness(HRB) |
|
ASTM A240 |
201 | ≥515 | ≥260 | ≥40 | ≤95 |
| 304 | ≥515 | ≥205 | ≥40 | ≤92 | |
| 316L | ≥485 | ≥170 | ≥30 | - | |
| 430 | ≥450 | ≥205 | ≥22 | ≤89 |
Type:
There are many kinds of claded plate, which can be divided into two categories according to their combination types: metal clad steel plate and non-metal complex steel plate.The metal claded plate is complexed of other metal coating on the surface of steel plate, such as stainless steel claded plate, titanium claded plate, copper claded plate and aluminum claded plate.Non-metal claded plate is a clad of viscoelastic resin with excellent performance of base plate and vibration damping, such as lightweight claded plate and damping claded plate.Stainless steel claded plate and titanium claded plate used to produce all kinds of storage tank, pressure vessel, water desalination equipment, etc., as a substitute for rare metals titanium and stainless steel in chemical industry, atomic energy, ocean development, and other areas of the required corrosion has been widely used.
Delivery status:
According to the performance and user needs, the steel plate can be hot rolled, controlled rolling, normalizing, annealing, tempering, normalizing, tempering, tempering, etc.
Detection and thickness direction performance: It can produce additional flaw detection requirements and z15-z35 anti-tear (thickness directional performance) steel plate, and can also provide z-directional performance steel plate according to ASTM, A770 and other standards.
Application: It is used for the production of linear accelerator cavity, rotary accelerator barrel, chemical container, high pressure wear-resistant pipe and other structural parts of hydropower station.
