Product Details:
|
Materials: | CS, SS, Copper, Titanium | Diameter: | 12~120mm |
---|---|---|---|
Thickness: | 0.25~3mm | Bulk Weight: | 306-383kg/m3 |
Life Span: | 3 Years | Application: | Industry,tower Packing |
Highlight: | stainless steel packing,metal tower packing |

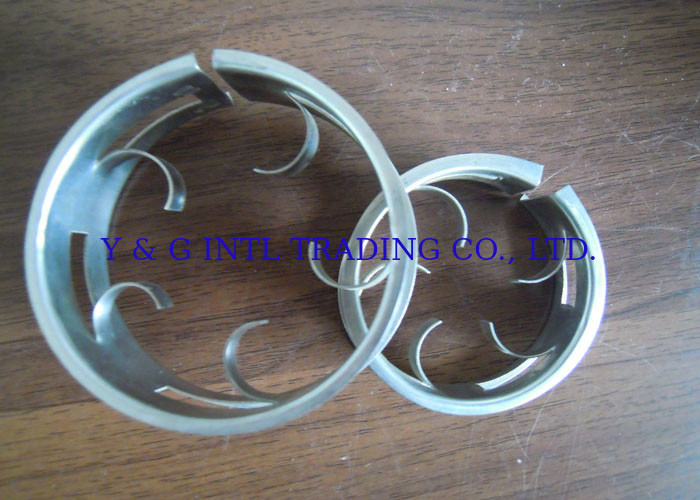

Lower Pressure Drop Metal Cascade Mini Rings For Common Decompression
Metal Cascade Mini Rings(Equivalent to well known Koch Glitsch CMR), JT-MCMR for short, A lower aspect ratio increases capacity and reduces pressure drop and the highly exposed internal and external surfaces give a high efficiency vehicle for liquid – gas contact with good mechanical strength.
Lower aspect ratio (H/D 1/2 to 1/3) increase capacity and reduces pressure drop; Metal Cascade Mini Rings, preferential orientation in a packed bed with the cylindrical axis in the vertical plane, allows a free passage for gas to flow through it;
The lower pressure drop and higher throughput of Metal Cascade Mini Rings enables a smaller column diameter and fan size to be specified in new installations, The highly exposed internal and external surfaces provide an efficient vehicle for liquid–gas contact, by multiple drip-points;
More resistant to fouling, because a combination of Metal Cascade Mini Rings' vertical alignment and open sides, allow any solids present to be flushed downwards through the packed bed.
Good Mechanical Strength, which allows Metal Cascade Mini Rings' use in deep packed beds that have a higher hydraulic capacity.
Specification of Cascade Mini Ring:
Diameter (mm) |
D x H x T (mm) |
Surface (M2/M3) |
Free Vol (%) |
Number Per M3 |
Weight (Kgs/M3) |
Dry packing factor (m-1) |
25 | 25 x 13 x 0.5 | 221 | 0.951 | 98120 | 383 | 257 |
38 | 38 x 19 x 0.6 | 153 | 0.959 | 30040 | 325 | 173 |
50 | 50 x 25 x 0.8 | 109 | 0.961 | 12340 | 308 | 123 |
76 | 76 x 38 x 1.0 | 72 | 0.961 | 3540 | 306 | 85 |
1. high flux low pressure drop;
2. high efficiency;
3. large operation flexibility;
4. good anti-clogging performance;
5. small min. wetting rate;
6. helpful for liquid-liquid extraction operation.
