Product Details:
|
| Materials: | CS，SS, Copper, Titanium | Diameter: | 12-120mm |
|---|---|---|---|
| Thickness: | 0.25-3mm | Bulk Weight: | 250-496kg/m3 |
| Life Span: | 3 Years | Application: | Industry,tower Packing |
| High Light: | metal tower packing,metal raschig ring |
||

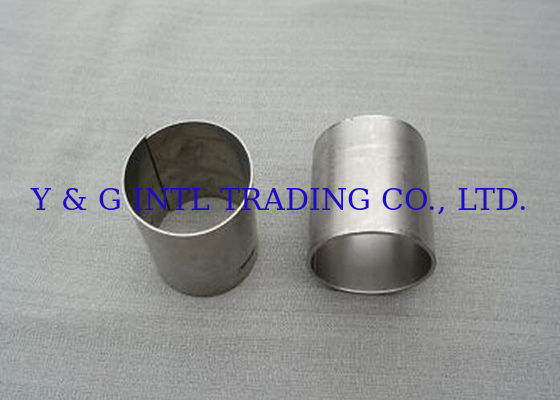

High Free Volume Durable Rasching Ring Thin Wall Excellent Heat Resistant
Rasching Ring was developed by F. Rasching in 1914. It is the first invented with a fixed geometry bulk packing. Its shape is simple, and the height is equal to the diameter of the diameter. Widely used in Adsorption, Steaming and Distilling performace, oil refinery, petrochemical industry, chemical industry and air pollution control etc., and also contracts anticorrosion engineering and environmental protection.
Specification of Rasching Ring:
|
Size |
D x H x T (mm) |
Surface (M2/M3) |
Free Vol (%) |
Number (Pc/m3) |
Weight (kg/m3) |
Dry packing factor (m-1) |
| 16 | 16x16x0.4 | 338 | 0.94 | 216479 | 496 | 407 |
| 25 | 25x25x0.5 | 184 | 0.95 | 46262 | 355 | 215 |
| 38 | 38x38x0.6 | 128 | 0.96 | 14126 | 294 | 145 |
| 50 | 50x50x0.8 | 95 | 0.96 | 5933 | 296 | 107 |
| 76 | 76x76x1.0 | 66 | 0.97 | 1801 | 250 | 72 |
Application: It is suitable for various separation, absorption and desorption devices, atmospheric and vacuum equipment, synthetic ammonia decarburization, desulfurization system, ethyl stupid separation, isooctane / clumsy separation and so on.
