Product Details:
|
| Material: | Hastelloy C-276 / UNS N10276 | Standard: | B775,B751,B619,B626 |
|---|---|---|---|
| Type: | Welded | Application: | Chemical Processing |
| OD: | 6-500mm Or Customized | Wall Thickness: | 0.7-3mm Or Customized |
| Packing: | Exporting Package/wooden Box /as Requirement. | ||
| High Light: | polished nickel tubing,nickel alloy pipe |
||

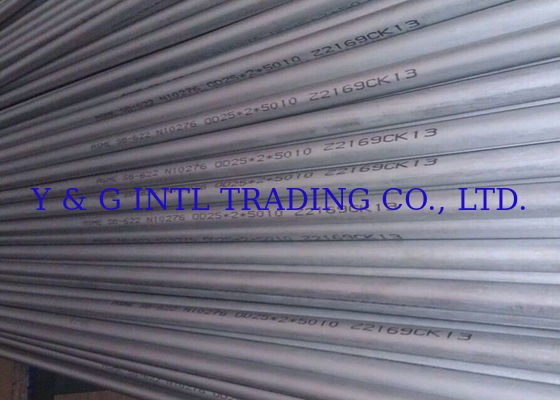

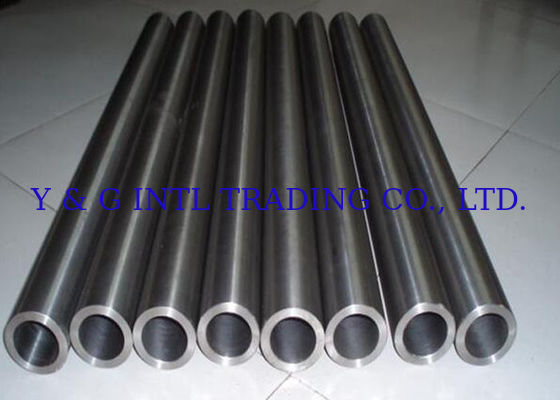

ASME SB - 622 ASTM B622 B619 B574 B575 Hastelloy C276 UNS N10276 Nickel Alloy Seamless Tube OD 25mm 114.3mm
Features: Hastelloy C-276 has excellent resistance to localized corrosion, stress corrosion cracking, and to both oxidizing and reducing media, thus making it suitable for a wide variety of chemical process environments, including ferric and cupric chlorides, hot contaminated media (organic and inorganic), formic and acetic acids, seawater and brine solutions. It is one of the few materials that withstands the corrosive effects of wet chlorine gas, hypochlorite and chlorine dioxide.
Chemical Composition:
| % | Ni | Cr | Mo | Fe | W | Co | C | Mn | Si | P | S | V |
| min | balance | 20.0 | 12.5 | 2.0 | 2.5 | |||||||
| max | 22.5 | 14.5 | 6.0 | 3.5 | 2.5 | 0.015 | 0.5 | 0.08 | 0.02 | 0.02 | 0.35 |
Product Types and Standards:
| Form | ASTM |
| Rod | B 574 |
| Plate, sheet and strip | B 575 |
| Seamless pipe and tube | B 622 |
| Welded pipe | B 619, B 775 |
| Welded tube | B 626, B 751 |
| Welding fitting | B 366 |
| Forged or rolled pipe flange and forged fitting | B 462 |
| Billet and bar for reforging | B 472 |
| Forging | B 564 |
Physical Properties:
| Density | 8.69 g/cm3 |
| Melting range | 1325-1370℃ |
Applications: Chemical processing, waste treatment, pollution control, pulp and paper production, and marine engineering.
Mark: As required.
