Metallic Structured Packed Bed Distillation Column With Higher Vapour Load Capacity

Metallic Structured Packed Bed Distillation Column With Higher Vapour Load Capacity
Metallic Structured Packed Bed Distillation Column With Higher Vapour Load Capacity Metallic Structured Packed Bed Distillation Column With Higher Vapour Load Capacity Metallic Structured Packed Bed Distillation Column With Higher Vapour Load Capacity Metallic Structured Packed Bed Distillation Column With Higher Vapour Load Capacity Metallic Structured Packed Bed Distillation Column With Higher Vapour Load Capacity

Large Image :  Metallic Structured Packed Bed Distillation Column With Higher Vapour Load Capacity

Product Details:
Brand Name: Y&G
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: In pallets, wooden cases or weave strips as required.
Delivery Time: 30days
Supply Ability: 2000t per month

Metallic Structured Packed Bed Distillation Column With Higher Vapour Load Capacity

Description
Material: Stainless Steel ,carbon Steel Dimensions: Customzied
Color: Metal Type: Structured Packing
Usage: Desulfurization Application: Desulfurize Tower Packing
High Light:

packed distillation column

,

plate distillation column

Metallic Structured Packed Bed Distillation Column With Higher Vapour Load Capacity

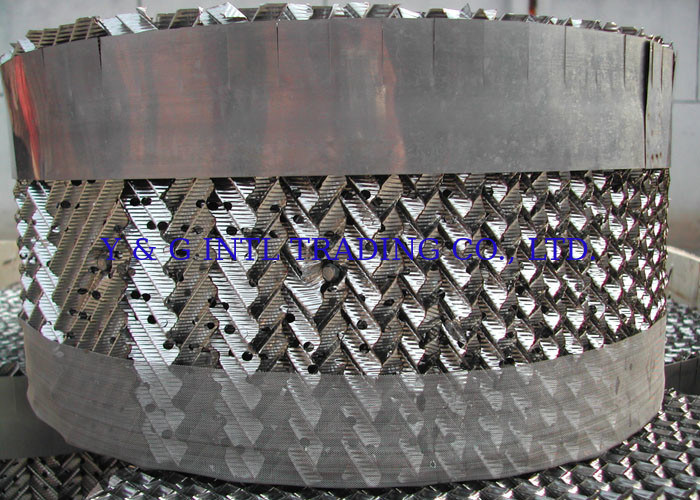

Orifice Corrugated Packing is clear and neat filling assembled and small and large corrugation rolled on basis thin board surficial holes. It has characteristics such as small resistance, even gas and liquid distribution, high efficiency, large flow rate and unremarkable magnifying effects etc. It's applied to negative pressure, normal pressure and pressurization operation.



Materials: stainless steel 304, 304L, 316, 316L, 410, carbon steel Q195, Q235 and other more.



Technical data:

TYPE

Peak height

mm

Surface Area
(m2/m3)
theoretical plate number 1/m Void (%)

(Pressure Drop)

Mpa/m

Dry packing
m/s

(kg/m3)0.5

MP-1 24 125 1-1.2 98.5 1.5×10-4 3
MP-2 12 250 2-3 97 1.52×10-4 2.6
MP-3 8 350 3.5-4 95 1.5×10-4 2
MP-4 6.5 450 4-4.5 93 1.8×10-4 1.5



Application:

1. Sea water deaerators

2. Waste gas purification, drying and gas, water sluble solvents absorbers

3. HCL and H2SO4 production

4. Air seperation

5. Strippers

6. Vacuum and atmospheric crude oil fractionator

7. Negative pressure, normal pressure and pressurization operation

8. Liquid/liquid extraction

9. Ethylene water quench tower



Metallic Structured Packed Bed Distillation Column With Higher Vapour Load Capacity 0
