Product Details:
|
| Material: | C28000, C27200 | Standard: | B135,JIS H3300 |
|---|---|---|---|
| Application: | Industry | Technique: | Seamless |
| OD: | 5-350mm | Wall Thickness: | 0.5-50mm Or Customised |
| Packing: | Exporting Package/wooden Box /as Requirement. | ||
| High Light: | seamless copper pipe,copper round tube |
||

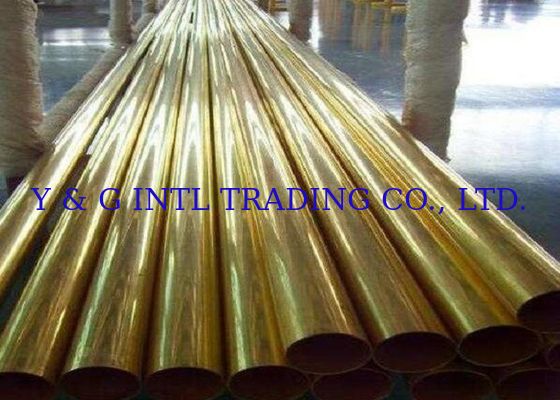

Brass Tube ASTM B135 C27200 C28000 Tubes Seamless Copper Tubing , Copper Tube , CuZn37 / CuZn36
Dimensions:
Outer diameter:5-350mm
Wall thickness: 0.5-50mm.
according to the buyers' requirements
Standard: ASTM B111 B135/DIN 1785 JIS H3300/ GB/T 8890.
Brass Tube Symbol:
| Grade | USA | UK | Germany | Japan |
| China BG | ASTM B111 | BS2871 | DIN 1785 | JIS H3300 |
| H65/63 | C28000/C27200 | CZ108 | CuZn36/CuZn37 | C2800/2700 |
Mechanical Properties of CuZn37:
| Temper | JIS Temper | Tensile Strength Rm/N/mm2 | Elongation A50/% | Hardness HV |
| M | O | 350~410 | ≥ 25 | 80~120 |
| Y4 | 1/4H | 375~445 | ≥ 15 | 105~145 |
| Y2 | 1/2H | 385~460 | ≥ 12 | 120~165 |
| Y | H | 450~510 | ≥ 5 | 135~185 |
Characteristics: Brass is an alloy composed of the metals copper and zinc. Both elements blend very well, which makes brass a very homogeneous material.
Excellent cold-working properties
Alloy that is most often used for deep-drawing
Good spring properties at the proper strength
Application: Brass is mainly used in the industry for general construction purposes or as resistor material. In addition, it is used in lamination, in the production of heating foils and in etching.
Mark: As required.
