Product Details:
|
| Material: | A179/SA179 | Type: | Seamless |
|---|---|---|---|
| OD: | 3.2mm~76.2mm | Wall Thickness: | 0.8mm~15mm |
| Application: | Heat Exchanger And Condenser | Surface Treatment: | Varnish, Oil-dip, Passivation, Phosphating, Shot Blasting |
| Delivery Status: | Annealed, Normalized, Normalized+Tempered, Etc | ||
| High Light: | carbon steel seamless tube,carbon steel welded pipe |
||

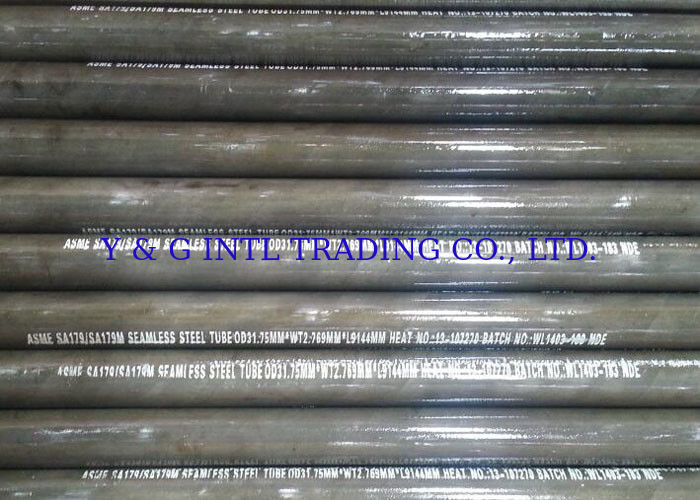

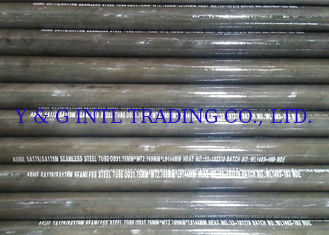

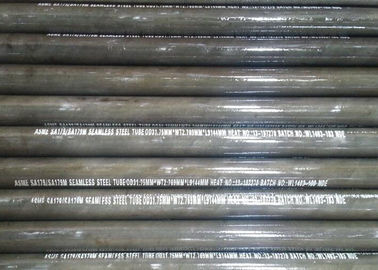

A179/SA179 Seamless Carbon Steel Tubing Cold Drawn Heat exchanger and condenser Pipes
Materials: A179/ SA179
Application: For high, middle, low pressure boiler and pressure purpose
Chemical Requirements & Mechanical Properties:
| Standard | Grade | Chemical Composition | Mechanical Properties | Elongation | |||
| C | Mn | P.S | TS Mpa | YS Mpa | (%) | ||
| ASTM A179 | A179 | 0.06-0.18 | 0.27-0.63 | ≤0.035 | ≥325 | ≥180 | ≥35 |
Inspection and Test: chemical composition test, mechanical properties test(tensile, yield, elongation), process properties test(flatting, flaring, bending, hardness, impact, etc.), appearance and size test, non-destructive inspection test, hydrostastic test.
Delivery status: Annealed, normalized, normalized+Tempered, etc.
Surface treatment: oil impregnation, paint, passivation, phosphating, shot blasting etc.

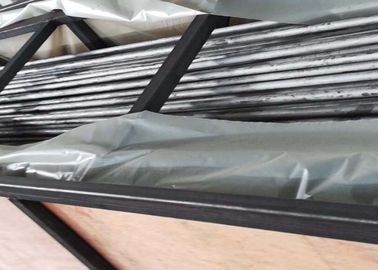

Packing: Exporting package/wooden box /as requirement.
Mark: As required.
