|Product Name:||Titanium Sheet||Thickness:||5~100mm|
ASTM B265 Titanium Alloy Sheet,

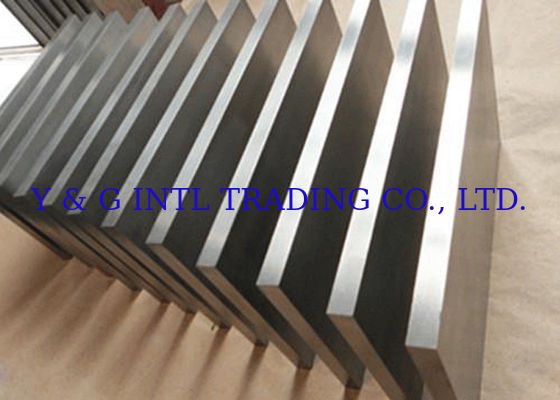

100mm Titanium Alloy Sheet
ASTM B265 covers annealed titanium and titanium alloy strip, sheet, and plate. ASTM B265 Ti and Ti-based alloy plates are widely used in the equipment for high-temperature environment, including aircraft equipment, petroleum and petrochemical, biomaterial, ocean and chemical industry, for example: blade, storage tank, target, tube and heat-exchanger equipment.
Thickness:5~100mm, Width:1200~2500mm, length:3000~10000mm
Unalloyed Titanium grades:
Grade 1,Grade 2,Grade 3,Grade 7,Grade 11 (CP Ti-0.15Pd),Grade 16,Grade 17,Grade 26,Grade 27
Titanium Based Alloys grades:
Grade 5(Ti-6Al-4V),Grade 9 ( Ti 3Al-2.5V),Grade 12 (Ti-0.3-Mo-0.8Ni),Grade 19 (Ti Beta C),Grade 23 (Ti 6Al-4V ELI),Grade 28
Grades of supply:Gr1 ,Gr2 ,Gr5,Gr12
ASTM B265 Commonly used grades Chemical Composition:
|Grades||C max||O max||H max||Fe max||Al||V|
|Grade5||0.08||0.20||0.015||0.40||5.50~ 6.75||3.50~ 4.50|
ASTM B265 Commonly used grades Mechanical Properties (%):
|Grades||Yield Point Mpa (N/mm2)||Tensile Strength Mpa (N/mm2)||Elongation% min|
The grades of titanium and titanium alloy metal covered by this specification shall have the chemical composition requirements of: nitrogen, carbon, hydrogen, iron, oxygen, aluminum, vanadium, tin, ruthenium, palladium, cobalt, molybdenum, chromium, nickel, niobium, zirconium, silicon, and titanium.
For sheet and strip, the bend test specimen shall stand being bent cold through without fracture in the outside of the bent portion. Product analysis tolerances cover variations between laboratories in the measurement of chemical content of the specimen.
In cutting samples for analysis, the operation should be carried out insofar as possible in a dust-free atmosphere because utmost care must be used in sampling titanium for chemical analysis due to its great affinity for elements such as oxygen, nitrogen, and hydrogen.
The chemical analysis shall be conducted by the standard techniques normally utilized by the manufacturer and purchaser.
