Product Details:
|
| Material: | Titanium Gr.12 | Standard: | B861，B862 |
|---|---|---|---|
| Technique: | Seamless | OD: | 3~114mm |
| Wall Thickness: | 1~6mm | Mark: | As Required |
| Package: | Sea-worthy Package | ||
| Highlight: | titanium welded tubes,small diameter titanium tubing |
||
Titanium grade 12 properties are that of a Chemical Composition of Iron 0.3 max, Nitrogen 0.03 max, Carbon 0.08 max, Molybdenum 0.2 - 0.4, Hydrogen 0.015 max, Oxygen 0.25 max, Nickel 0.6 - 0.9 and Titanium balance. Because of its properties, titanium grade 12 finds great demand in applications where there is a high temperature being used and where there is an issue with crevice corrosion. Titanium grade 12 is also used in airframe components and marine components.
Grades: Grade 12
Standard: ASTM B861, B862
Advantage:
Moderate Strength Titanium
Excellent Cold Formability
Excellent Weldability
Excellent Resistance to High Oxidation
Chemical composition :
| Grade | Chemical composition | ||||||||||||
| 12 | O | N | C | H | Fe | AL | V | Ni | Mo | Pd | Others | Residuals | Ti |
| 0.25Max. | 0.03Max | 0.08Max | 0.015Max. | 0.30Max | 0.6-0.9 | 0.2-0.4 | 0. 4Max. | Bal | |||||
Mechanical Properties:
| Hardness HB 30 ≤ HB |
0.2% Yield strength Rp ≥ N/mm² |
Tensile strength Rm | Elongation A5 | Modulus of elasticity |
| 170 | 345 | ≥480 | 18 | 105 |
Mark: As required.
Inspection and Test: chemical composition test, mechanical properties test(tensile, yield, elongation), process properties test(flatting, flaring, bending, hardness, impact, etc.), appearance and size test, non-destructive inspection test, hydrostastic test.
Delivery status: Annealed, normalized, normalized+Tempered, etc.
Surface treatment: oil impregnation, paint, passivation, phosphating, shot blasting etc.

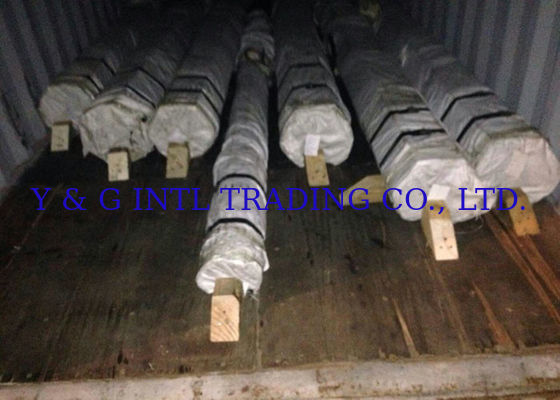

Packing: Exporting package/wooden box /as requirement.
