Product Details:
|
| Material: | UNS S32304，S31803, S32205, S32760 | Standard: | SA789,A790 |
|---|---|---|---|
| Type: | Seamless,Welded | OD: | 1/4inch~24inch |
| Wall Thickness: | SCH10S , SCH10, SCH20, SCH30, SCH40S... | Application: | Heat Exchangers And Coolers |
| Surface Treatment: | Varnish, Oil-dip, Passivation, Phosphating, Shot Blasting | Delivery Status: | Annealed, Normalized, Normalized+Tempered, Etc |
| High Light: | stainless steel pipe,polished stainless steel tubing |
||

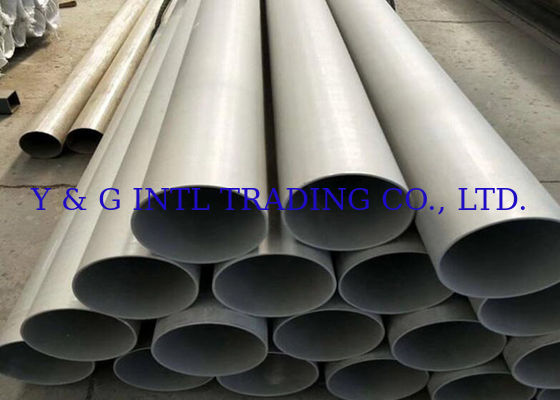

Stainless Steel Round Tube , High Precision S32304 Stainless Tube
Super duplex stainless such as duplex is a mixed microstructure of austenite and ferrite which has improved strength over ferritic and austenitic steel grades. The main difference is super duplex has a higher molybdenum and chromium content which gives the material greater corrosion resistance.
Super duplex has the same benefits as its counterpart - it has lower production costs when compared with similar ferritic and austenitic grades and due to the materials increased tensile and yield strength, in many cases this gives the purchaser the welcomed option of purchasing smaller thicknesses without the need to compromise on quality and performance.
Standards:
ASTM A789 Standard Specification for Seamless and Welded Ferritic/Austenitic Stainless Steel Tubing for General Service
Features:
1.Superior resistance to general and local corrosion, especially to stress corrosion, pitting corrosion, crevice corrosion, corrosion fatigue and abrasion & corrosion.
2.Good weldability
3.Good mechanical properties
4.Excellent intergranular corrosion resistance
5.High cost-effectiveness, long life time
Application:
Chemical processing, transport and storage,
Oil and Gas exploration and processing equipment,
Marine and other high chloride environments,
Pulp and paper digesters, liquor tanks and paper machines.
Chemical Requirements:
| Chemical Composition | |||||||||||
| UNS Designation | C | Mn | P | S | Si | Ni | Cr | Mo | N | Cu | Others |
| S32304 | 0.03 | 2.5 | 0.04 | 0.04 | 1 | 3.0-5.5 | 21.5-24.5 | 0.05-0.60 | 0.05-0.20 | 0.05-0.60 | … |
Mechanical properties:
| Mechanical properties | |||||
| UNS Designation | Tensile Strength, min, (Mpa) | Yield Strength, min,(Mpa) | Elongation in 2 in. or 50mm, min, % | Hardness, max. | |
| S32304 | 690 | 450 | 25 | … | … |
| OD ≤1 in. (25mm) | |||||
| S32304 | 600 | 400 | 25 | 290 | 30 |
| OD > 1 in. (25mm) | |||||
Mark: As required.
Inspection and Test: chemical composition test, mechanical properties test(tensile, yield, elongation), process properties test(flatting, flaring, bending, hardness, impact, etc.), appearance and size test, non-destructive inspection test, hydrostastic test.
Delivery status: Annealed, normalized, normalized+Tempered, etc.
Surface treatment: oil impregnation, paint, passivation, phosphating, shot blasting etc.
Packing: Exporting package/wooden box /as requirement.
