|Type:||Hump Support||Function:||Used For Supporting Random.|
|Application:||Chemical Industry.||Package:||Wooden Box Or Customzied|
packed column internals,
distillation tower internals
SS/CS/ Plastic Column Internals Hump Support 290 Mm Fixed Width Sectional Design

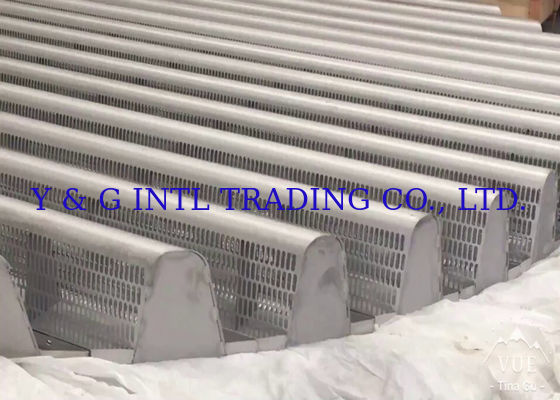

Tower packing hump support,also named as multi-beam packing support,is made of several support beams. It can be made of metallic (carbon steel, stainless steel), plastic (PP, PVDF, CPVC), fiber reinforced plastic (FRP) and ceramic materials. Tower packing hump support is widely used in the absorption tower, washing tower and distillation towers for random packing support. It has high open area, extremely low pressure drop and separated gas and liquid paths for high mass transfer efficiency.The hump support is regarded as one of the best random packing support grids.
carbon steel,Stainless steel including 304,304L,316,316L,321,410 etc.
Plastic including PP,RPP,PVC,PTFE,FRP,etc
Size and structure:
1. 290 mm fixed width. It is assembled with several support beams, which has 290 mm width and 250–300 mm height.
2. 10 mm fixed liquid drainage distance. Each neighbor beam are set an 10 mm pitch for liquid drainage.
3. Smaller than 10 mm opening size. The slot, square or round openings on the beam are smaller than 10 mm, which can prevent the 10 mm packing leaking.
4. Sectional design. Sectional design for easy transporting and installing and entering from manway.
5. Separated channel for liquid and gas. Gas rises from the beam top and liquid flow down from the flat way to supply extremely low pressure drop.
6. With or without outer frame. The multi-beam packing support can be designed with or without outer frame to suit different diameters of packing tower.
Size and structure can be customized according to customer's drawings.
According to the material,the packing hump support have the metal support and plastic support.
Stainless steel packing support < 300 °C.
Carbon steel packing support < 200 °C.
Plastic Packing support <100°C (PTFE for 250 °C)
1. Great strength, large allowable load.
2. Great hydraulic performance.
4. Low weight.
5. Simple construction, easy installation.
6. High opening rate, uaually about 100%.
Application: can be used in gas-liquid separation in chemical, petroleum, sulfate, medicine, light industry, metallurgy, machine, building, construction, aviation, shipping and environment protection.
