Product Details:
|
| Material: | C70600, Bfe10-1.6-1, CuNi10Fe1.6mn,304,316... | Standard: | B16.9, MSS SP-43,DIN 2617,JIS B2313 |
|---|---|---|---|
| Connection: | Welding | Type: | 45 90 180 Or As Required |
| Size: | 1/2NB - 48NB | Application: | Oil Gas Water Industrial |
| Package: | Wooden Box Or Seaworthy Package | ||
| Highlight: | steel pipe flanges and flanged fittings,pipe flanges and fittings |
||

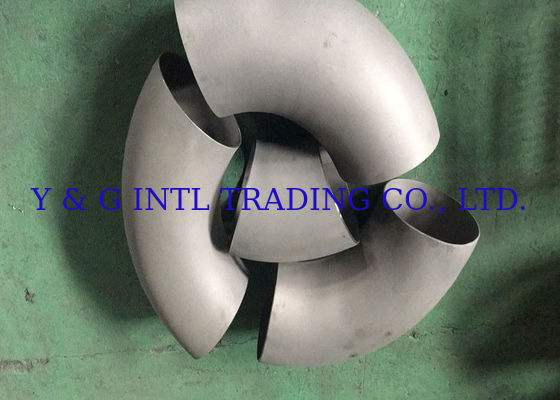

C70600 Fittings and Flange Butt-Welding 90 Degree Elbow and Returns Bends
Bend is a commonly used connection pipe for plumbing installation. It is used to connect the pipe and change the direction of the pipe.
Standard:GB 12459,GB/T 13401,SH 3408,SH3409,HG/T 21635,HG/T 21631,SY/T 0510,ASME B16.9,ASME B16.28
Drawing:
Nominal Pipe Size |
Center to End |
Center to Center |
Back to Back |
|||||
| 45°Elbow | 90°Elbow | 180°Return | ||||||
| DN | NPS | H | F | P | K | |||
| DN | NPS | LR |
LR |
SR |
LR |
SR |
LR |
SR |
| 15 | 1/2 | 16 | 38 | / | 76 | / | 48 | / |
| 20 | 3/4 | 19 | 38 | / | 76 | / | 51 | / |
| 25 | 1 | 22 | 38 | 25 | 76 | 51 | 56 | 41 |
| 32 | 11/4 | 25 | 48 | 32 | 95 | 64 | 70 | 52 |
| 40 | 11/2 | 29 | 57 | 38 | 114 | 76 | 83 | 62 |
| 50 | 2 | 35 | 76 | 51 | 152 | 102 | 106 | 81 |
| 65 | 21/2 | 44 | 95 | 64 | 190 | 127 | 132 | 100 |
| 80 | 3 | 51 | 114 | 76 | 229 | 152 | 159 | 121 |
| 90 | 31/2 | 57 | 133 | 89 | 267 | 178 | 184 | 140 |
| 100 | 4 | 64 | 152 | 102 | 305 | 203 | 210 | 159 |
| 125 | 5 | 79 | 190 | 127 | 381 | 254 | 262 | 197 |
| 150 | 6 | 95 | 229 | 152 | 457 | 305 | 313 | 237 |
| 200 | 8 | 127 | 305 | 203 | 610 | 406 | 414 | 313 |
| 250 | 10 | 159 | 381 | 254 | 762 | 508 | 518 | 391 |
| 300 | 12 | 190 | 457 | 305 | 914 | 610 | 619 | 497 |
| 350 | 14 | 222 | 533 | 356 | 1067 | 711 | 711 | 533 |
| 400 | 16 | 254 | 610 | 406 | 1219 | 813 | 813 | 610 |
| 450 | 18 | 286 | 686 | 457 | 1372 | 914 | 914 | 686 |
| 500 | 20 | 318 | 762 | 508 | 1524 | 1016 | 1016 | 762 |
| 550 | 22 | 343 | 838 | 559 | 1676 | 1118 | 1118 | 838 |
| 600 | 24 | 381 | 914 | 610 | 1829 | 1219 | 1219 | 914 |
| 650 | 26 | 405 | 991 | 660 | ||||
| 700 | 28 | 438 | 1067 | 711 | ||||
| 750 | 30 | 470 | 1143 | 762 | ||||
| 800 | 32 | 502 | 1219 | 813 | ||||
| 850 | 34 | 533 | 1295 | 864 | ||||
| 900 | 36 | 565 | 1372 | 914 | ||||
| 950 | 38 | 600 | 1448 | 965 | ||||
| 1000 | 40 | 632 | 1524 | 1016 | ||||
| 1050 | 42 | 660 | 1600 | 1067 | ||||
| 1100 | 44 | 695 | 1676 | 1118 | ||||
| 1150 | 46 | 727 | 1753 | 1168 | ||||
| 1200 | 48 | 759 | 1829 | 1219 | ||||
Application: Due to its good comprehensive performance, the bend is widely used in basic projects such as chemicals, construction, water supply, drainage, oil, heavy and heavy industries, refrigeration, sanitation, water heating, fire protection, electricity, aerospace, and shipbuilding.
