Product Details:
|
| Material: | Alumina Ceramic | Alumina Content: | 13% ~23% Or Specified |
|---|---|---|---|
| Acid Resistance (%): | >99.6 | Size: | 6mm,10mm,16mm,25mm,40mm, 50mm, 80mm Or As Required. |
| Thickness: | 0.5mm-30mm | Purity: | 95%-99.7% |
| Density: | 3.6-3.9g/cm3 | Application: | Industrial Ceramic |
| High Light: | ceramic saddle packing,ceramic tower packing |
||

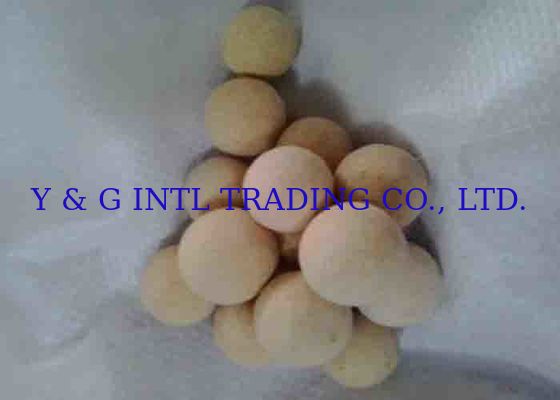

Natural Gas Reaction Tower Ceramic Inert Balls With Excellent Thermal Properties
Ceramic Inert Balls are widely used in many different applications.
The main components of the raw material of the are SiO2<80%, Al2O3+SiO2 >93%. The predominant qualities of the catalyst bed support media are its low pressure drop, excellent compressive strength and good resistance to thermal shock.
Inert Alumina Ball(Al2O3>99%) spheres are characterized by their low silica content (SiO2 < 0.2%). The high degree of purity (Al2O3 > 99%) and strength make the product ideal for high temperature and steam applications where leached silica can coat downstream equipment or foul or poison the catalyst bed. The excellent thermal properties combined with its high density and ability to withstand operating temperatures to 1.800℃, make it a good choice for heat retention or equilibration media.
All produced batches are tested according to the standard quality tests and a test certificate can be supplied together with the delivery. Additional testing is available on request.
Component:
| SiO2 | AL203 | SiO2 | Fe203 | CaO | MgO | K2O+Na2O |
| >,92% | 20-80% | 15-75% | <,1% | <,1,5% | <,2,5% | <,4% |
Specification of Ceramic Ball
| size | piece density |
surface area |
voidage | YG-ICB bulk weight |
YG-IAB bulk weight |
|
| inch | mm | pcs/m3 | m2/m3 | % | kg/m3 | kg/m3 |
| 1/8" | 2 - 4 | 8.000.000 | 720 | 44 | 1.400 | 2.200 |
| 1/4" | 5 - 7 | 4.750.000 | 420 | 44 | 1.400 | 2.200 |
| 3/8" | 9 - 11 | 1.140.000 | 390 | 44 | 1.400 | 2.200 |
| 1/2" | 11 - 13 | 580.000 | 320 | 45 | 1.400 | 2.200 |
| 5/8” | 14 - 17 | 330.000 | 230 | 45 | 1.400 | 2.200 |
| 3/4" | 18 - 21 | 142.000 | 170 | 45 | 1.400 | 2.200 |
| 1" | 23 - 27 | 71.000 | 130 | 45 | 1.400 | 2.000 |
| 1 1/4" | 30 - 34 | 35.000 | 110 | 46 | 1.350 | 2.000 |
| 1 1/2" | 35 - 40 | 19.200 | 90 | 47 | 1.350 | 2.000 |
Application:

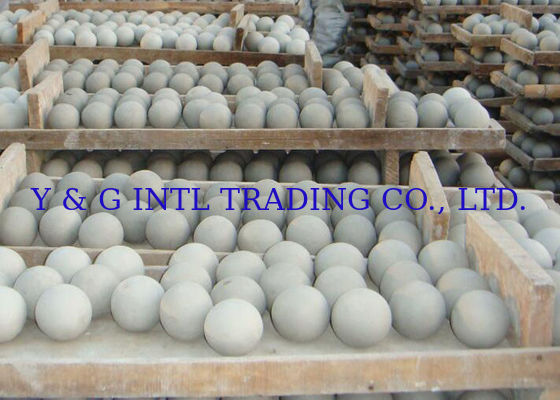

Inert Alumina Ball have high Excellent characteristics of strength, high hardness and high wear resistance, large gravity, small volume, high temperature resistance, corrosion resistance, and no pollution , so it has been widely used in the fine and deep processing for hard materials of different types of ceramics, enamel, glass, chemicals, and other factories.It is a grinding body of fine crushing equipment such as ball grinder, tank grinder, and vibration grinder. Its crushing grinding efficiency and wear resistance are much better than ordinary ball stones or natural pebbles.
