Product Details:
|
| Material: | Alumina Ceramic | Alumina Content: | 13% ~23% Or Specified |
|---|---|---|---|
| Acid Resistance (%): | >99.6 | Size: | 6mm,10mm,16mm,25mm,40mm, 50mm, 80mm Or As Required. |
| Thickness: | 0.5mm-30mm | Purity: | 95%-99.7% |
| Density: | 3.6-3.9g/cm3 | Application: | Industrial Ceramic |
| Highlight: | ceramic saddle packing,ceramic tower packing |
||

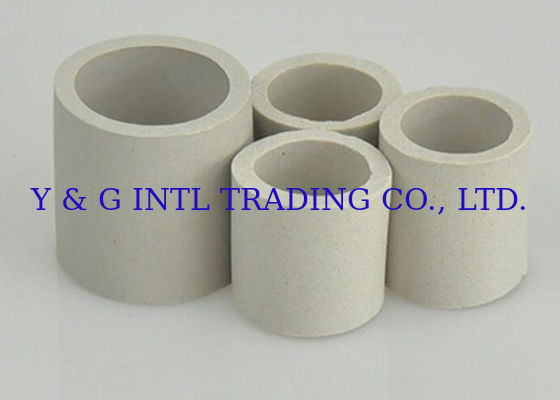

Alumina Ceramic Raschig Ring 0.5mm-30mm Thickness For Cooling Towers
Ceramic Raschig Ring is common regular packing that they are still used for refilling existing columns and other applications. Its surface ratio is higher than ceramic cylinders and balls by 30% and its ring shape has high mechanical stability. It is the first development of a random packing. Simple shape, it is the same height and diameter of the ring. Raschig rings large size (≥100mm) are structurally packed in the column, for small size<100mm below the Raschig rings and more filled with heaps way.
Specification of Cermic Rasching Ring:
| Diameter (mm) | Size (mm) | Surface Area (m2/m3) | Void (%) | Number (pcs/m3) |
| 6 | 6×6×1.0 | 700 | 57 | 2640000 |
| 8 | 8×8×1.5 | 490 | 62 | 1210000 |
| 10 | 10x10x2 | 400 | 67 | 750000 |
| 20 | 20×20×2.5 | 230 | 70 | 96000 |
| 25 | 25×25×3.0 | 200 | 71 | 42000 |
| 50 | 50×50×2.5 | 105 | 73 | 5200 |
| 76 | 76×76×3.0 | 80 | 74 | 2260 |
| 100 | 100×100×8.0 | 66 | 76 | 1000 |
| 150 | 150×150×15.0 | 40 | 70 | 283 |
Features: excellent acid resistant properties, the ability of reisting various inorganic acid, organic acids and organic solvents corrosion(except HF acid), high temperature in a variety of occasions, c can be used at various high temperatures
Application: wide range of applications, can be used for chemical industry, metallurgy, gas and environmental protection industries in the drying tower, absorption tower, cooling tower, scrubber, regeneration tower.
