Product Details:
|
| Materials: | Polypropylene(PP), Reinforced Polypropylene(RPP), Reinforced Nylon 6, Reinforced Nylon 66… | Plastic Modling Type: | Injection, Extruding. |
|---|---|---|---|
| Diameter: | 16-76mm | Bulk Weight: | 48-85kg/m3 |
| Color: | Origin Color Or As Required | Void Rate: | 94% |
| Life Span: | 3 Years | Application: | Industry, Tower Packing |
| High Light: | plastic tower packing,random plastic packing |
||
Lower Pressure Drop Plastic Random Packings High Effiency For Deadsorption Equipment

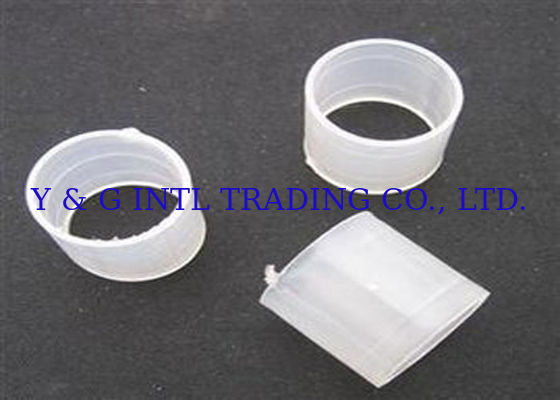

Polymer Raschig Ring (Plastic), are made of materials resistant to the heat and corrosion that can refer to some such as: Poly ethylene (PE),Poly Propylene (PP), Improved Poly propylene (RPP), Poly Vinyl Chloride (PVC), C-PVC and PVDF and …
The characteristics of this product are: much empty space, low pressure drop, low-mass transfer per height unit, uniform contact of gas-liquid phases, low specific mass and high mass transfer efficiency. These products are suitable for temperature interval of 30 to 150 degree centigrade So in this order have been used widely in the chemical industry, petrochemical, alkaline and Chloride industries, coal gas industry and protecting the environment and ….Of course by using special and engineering Polymer materials, packing`s working temperature interval will be increased.
Cylindrical packing is of first generation of random packing and still is used. Their fast production rate and easy providing caused slight cost of them and added on attractiveness of this product and it is used continually in different industries.
Raschig Ring Specification:
|
Diameter (mm) |
Size(mm)
|
Surface Area (m2/m3) |
Void Rate (m3/m3) |
Number PCE/M3 |
Dry Packing Factor (m-1) |
| 16 | 16×16×1.0 | 188 | 91 | 171000 | 275 |
| 25 | 25×25×1.2 | 175 | 90 | 53500 | 239 |
| 38 | 38×38×1.4 | 115 | 89 | 13700 | 220 |
| 50 | 50×50×1.5 | 93 | 90 | 6500 | 127 |
| 76 | 76×76×2.6 | 73 | 92 | 1765 | 94 |
Application: It is used in various seperation, adsorption, deadsorption equipment, normal pressure drop equipment, decarbonization of synthetic ammonia, desulphurization, seperation of ethylbenzene, isooctane or methane.
