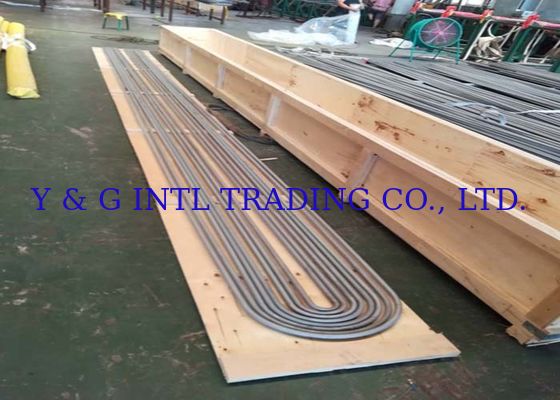

Smooth Surface Duplex Steel U Tube 19.05 * 1.24mm S32750 S32760 S32900

Smooth Surface Duplex Steel U Tube 19.05 * 1.24mm S32750 S32760 S32900
Smooth Surface Duplex Steel U Tube 19.05 * 1.24mm S32750 S32760 S32900 Smooth Surface Duplex Steel U Tube 19.05 * 1.24mm S32750 S32760 S32900 Smooth Surface Duplex Steel U Tube 19.05 * 1.24mm S32750 S32760 S32900 Smooth Surface Duplex Steel U Tube 19.05 * 1.24mm S32750 S32760 S32900 Smooth Surface Duplex Steel U Tube 19.05 * 1.24mm S32750 S32760 S32900

Large Image :  Smooth Surface Duplex Steel U Tube 19.05 * 1.24mm S32750 S32760 S32900

Product Details:
Brand Name: Y & G
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Exporting package/wooden box / per customers’ requirement
Delivery Time: 25-35 days
Payment Terms: L/C, T/T
Supply Ability: 8000MT/Month

Smooth Surface Duplex Steel U Tube 19.05 * 1.24mm S32750 S32760 S32900

Description
Material: UNS S32205,S32750,S32760,S32900 Standard: A789/SA789
Application: Boiler Heat Ex-changers OD: 6 - 203.2 Mm
Thickness: 0.5-35mm Packing: Standard Sea-worthy Packing
High Light:

u bend pipe

,

heat exchanger tube

S32750 S31803 S32205 U Bend Tube Heat Exchanger Tubing , Duplex Steel U Tube 19.05 * 1.24mm



U Bending Tube

As the both ends fixed on the same tube sheet, the shell and the tube are separated so the U-type heat exchange can not thermal expanse, and the tube bundle can free stretch out and draw back, and cannot produce temperature stress due to the fluid temperature difference. The U-shaped bend is adopting hydraulic drive, bend, PLC control and pipe clamp to complete automatically. The synchronization of the cantilever and elbow movement , effectively prevents pipe sag in the bending process and adjusts speed in the process of operation. Using encoder positioning can ensure the Angle is precise, and can be set freely. In the process of running, it can not only display the movement, but also can display an error message, to help correct the operation and debug troubles, in order to ensure the safety of the operator and device and put an end to the hidden trouble of the production.

Standards: A789/ SA789 ,

Materials: S32205, S31803, S32750, S32760, S31254, S32304 , S31500,S32550,S31200,S32900...

One Of Reference Drawing :



Smooth Surface Duplex Steel U Tube 19.05 * 1.24mm S32750 S32760 S32900 0



Testing Items:

1. Appearance Inspection;

2. Dimensional Inspection;

3. Chemical Composition Testing;

4. Mechanical Properties Testing;

5. PWHT (Solution Annealing) of U-Bend+300mm of straight length after Bending at about 680 C Holding time 5 to 7 Seconds.

6. 100% Hydrostatic test after Bending;

7. According to client’s requirement...



Application: Used in Boiler Heat Ex-changers, Fluid, Gas and Oil Transport, Pressure and Heat Transmission, Construction and Ornament, Elaborate designs available as per customers' requirements.Our U bends are suitable to return the flow of coolants/fluids at 180 degree in a much smaller space. The straight tubes are strictly implements the standard specifications and the customers' drawings requirements.



Smooth Surface Duplex Steel U Tube 19.05 * 1.24mm S32750 S32760 S32900 1
