ASTM A 213 T11 T22 U Bend Tube 25.4mm * 2.11mm For Evaporater Heat Exchanger

ASTM A 213 T11 T22 U Bend Tube 25.4mm * 2.11mm For Evaporater Heat Exchanger

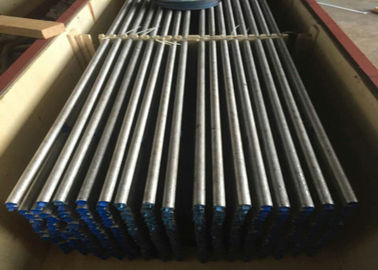

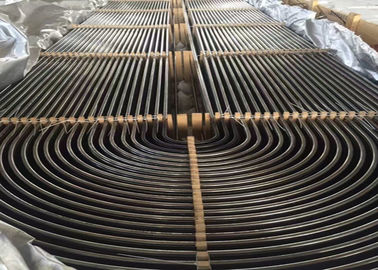

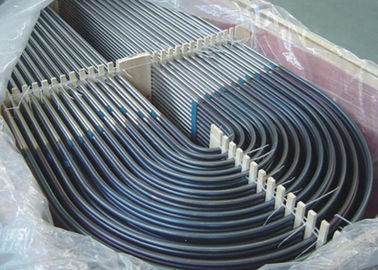

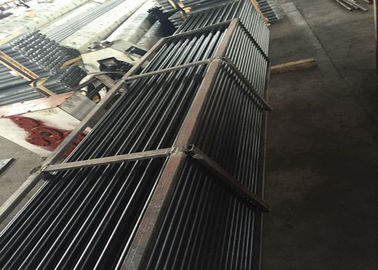

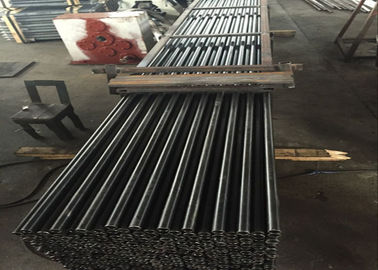

ASTM A 213 T11 T22 U Bend Tube 25.4mm * 2.11mm For Evaporater Heat Exchanger ASTM A 213 T11 T22 U Bend Tube 25.4mm * 2.11mm For Evaporater Heat Exchanger ASTM A 213 T11 T22 U Bend Tube 25.4mm * 2.11mm For Evaporater Heat Exchanger ASTM A 213 T11 T22 U Bend Tube 25.4mm * 2.11mm For Evaporater Heat Exchanger ASTM A 213 T11 T22 U Bend Tube 25.4mm * 2.11mm For Evaporater Heat Exchanger

Large Image :  ASTM A 213 T11 T22 U Bend Tube 25.4mm * 2.11mm For Evaporater Heat Exchanger

Product Details:
Brand Name: Y & G
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Exporting package/wooden box / per customers’ requirement
Delivery Time: 25-35 days
Payment Terms: L/C, T/T
Supply Ability: 8000MT/Month

ASTM A 213 T11 T22 U Bend Tube 25.4mm * 2.11mm For Evaporater Heat Exchanger

Description
Material: T11, T12, T5, T9... Standard: A213/SA213
Application: Boiler Heat Ex-changers OD: 4- 127 Mm
Thickness: 0.4-12.7mm Packing: Standard Sea-worthy Packing
High Light:

u bend pipe

,

heat exchanger u tube

ASME SA213 T11 T22 U Bend Tube Heat Exchanger Tube 25.4mm * 2.11mm U Tube



U Bending Tube

As the both ends fixed on the same tube sheet, the shell and the tube are separated so the U-type heat exchange can not thermal expanse, and the tube bundle can free stretch out and draw back, and cannot produce temperature stress due to the fluid temperature difference. The U-shaped bend is adopting hydraulic drive, bend, PLC control and pipe clamp to complete automatically. The synchronization of the cantilever and elbow movement , effectively prevents pipe sag in the bending process and adjusts speed in the process of operation. Using encoder positioning can ensure the Angle is precise, and can be set freely. In the process of running, it can not only display the movement, but also can display an error message, to help correct the operation and debug troubles, in order to ensure the safety of the operator and device and put an end to the hidden trouble of the production.



One Of Reference Drawing :



ASTM A 213 T11 T22 U Bend Tube 25.4mm * 2.11mm For Evaporater Heat Exchanger 0



Testing Items:

1. Appearance Inspection;

2. Dimensional Inspection;

3. Chemical Composition Testing;

4. Mechanical Properties Testing;

5. PWHT (Solution Annealing) of U-Bend+300mm of straight length after Bending at about 680 C Holding time 5 to 7 Seconds.

6. 100% Hydrostatic test after Bending;

7. According to client’s requirement...



Application: Used in Boiler Heat Ex-changers, Fluid, Gas and Oil Transport, Pressure and Heat Transmission, Construction and Ornament, Elaborate designs available as per customers' requirements.Our U bends are suitable to return the flow of coolants/fluids at 180 degree in a much smaller space. The straight tubes are strictly implements the standard specifications and the customers' drawings requirements.



ASTM A 213 T11 T22 U Bend Tube 25.4mm * 2.11mm For Evaporater Heat Exchanger 1
