Product Details:
|
| Material: | CS, SS, Copper... | Type: | Low Fin Tubes |
|---|---|---|---|
| Bare Tube OD: | 10-38mm | Fin Pitch: | 0.6-2.0mm |
| Fin Height: | <1.6mm | Fin Thick: | About 0.3mm |
| Packing: | Strong Plywood Case With Steel Frame | ||
| High Light: | finned aluminum tubing,heating fins pipe |
||

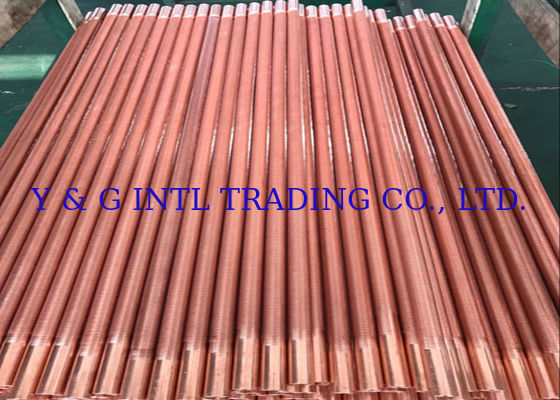

Low Finned Tube Copper Tube Air Cooled Extruded Copper Low Fin Tube for Condenser
Low Finned Tube
Ordinary heat exchange tube by rolling thread fin from forming on the outer surface of a highly efficient heat exchange tube type, make the pipe type has high heat transfer capability.Lower pipe condensate drop, the liquid film thinning, thermal resistance, improve the efficiency of condensation heat transfer, can according to customer request processing all kinds of finned tube.
Features: Low finned tube have no contact resistance, the heat transfer performance is good, high strength, good heat resistance, resistance to thermal shock and anti vibration ability, large heat transfer area per unit length, high heat transfer, enough pressure inside the tube, low pressure drop, low manufacturing cost, it can greatly save the original material.
One Of Reference Drawing:
| TYPE | NAME | BARE TUBE MATERIAL |
FIN TUBE MATERIAL |
BARE TUBE DIAMETER(MM) |
FIN SPECIFICATION(MM) | ||
| FIN PITCH |
FIN HEIGHT |
FIN THICK |
|||||
| EXTRUDED | LOW FIN TUBE T-TYPE FIN TUBE | CARBON STEEL, COPPER,STAINLESS STEEL, ALLOY | / | 10-38 | 0.6-2 | ‹1.6 | ~0.3 |
Application: Mainly used in condenser.
