Product Details:
|
| Material: | 7075 , 7005 ,7001... | Type: | Seamless |
|---|---|---|---|
| Application: | Large Heat Exchangers | OD: | 2~120mm |
| Wall Thickness: | 0.5mm~20mm Or Customised | Packing: | Exporting Package/wooden Box /as Requirement. |
| High Light: | aluminum round tube,thin wall aluminum tubing |
||

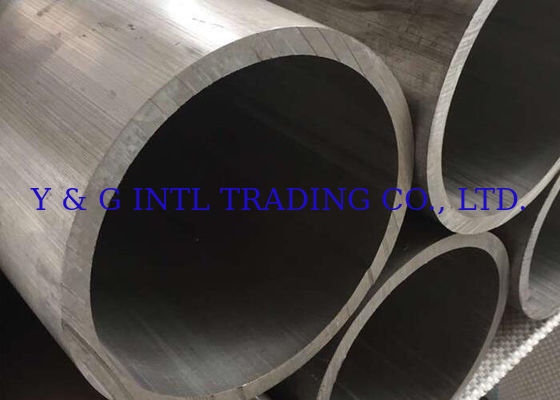

Hollow Aluminum Tube 7000 Series 7005 / 7075 with Good Welding Performance Seamless Aluminum Tube 19.05mm
7005: strength is higher than 7003 , good welding performance, heat treatment can be strengthened.
Production Description:
| Item | 7000 Series | |
| Standard | ASTM GB/T3190-2008 | |
| Material available | 7000 Series: | |
| Alloy 7001 | ||
| Alloy 7075 | ||
| Alloy 7005 | ||
| Seamless Tube ,Pipe | ||
| Specifications | Wall Thickness | 0.5mm~20mm |
| Out Diameter | 2mm~120mm | |
| Length | 3m,5.8m,6m,or as required | |
| Surface | Oxidation, electrophoresis coating, fluorine carbon spraying, powder coating, wood grain transfer, printing, mechanical drawing, mechanical polishing, sand blasting | |
| Normal Anodizing thickness | 8-12 micro | |

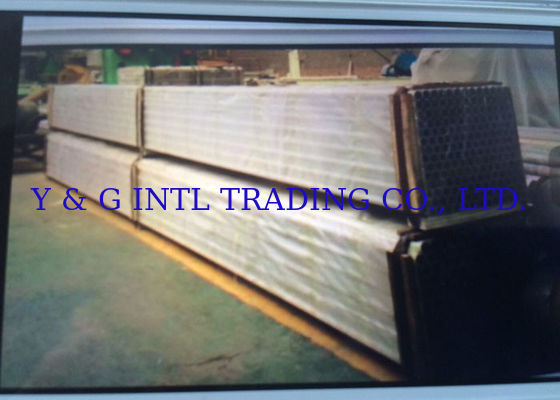

| Package | Export standard package: bundled wooden box or be required. | |
Chemical Composition:
| Grade | Si | Fe | Cu | Mn | Mg | Zn | Ti | Cr | Zr | Al | Other |
| 7005 | ≤0.35 | ≤0.40 | ≤0.10 | 0.2~0.7 | 1.0~1.8 | 4.0~5.0 | 0.01~0.06 | 0.06~0.20 | 0.08~0.20 | Balance | ≤0.05 each, ≤0.15 total |
Applications: 7005 Aluminum alloy extrusion materials are often used in the manufacture of welding structures that require high strength and high fracture toughness, such as trusses, poles, and containers for transportation vehicles; Large heat exchangers, and parts that can not be fused after welding; It can also be used to make sports equipment such as tennis rackets and softball sticks.
Mark: As required.
