Product Details:
|
| Material: | Hastelloy C 2000/ UNS N06200 | Standard: | ASTM B626,B619,B751,B775 |
|---|---|---|---|
| Type: | Welded | Application: | Industry |
| OD: | 6-500mm Or Customized | Wall Thickness: | 0.7-3mm Or Customized |

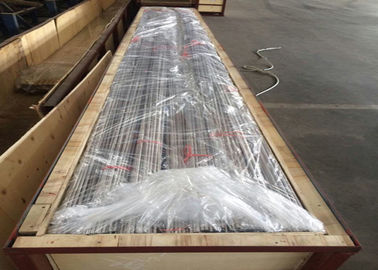

| Packing: | Exporting Package/wooden Box /as Requirement. | ||
| High Light: | nickel alloy pipe,polished nickel tubing |
||

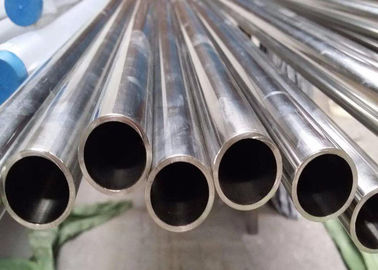

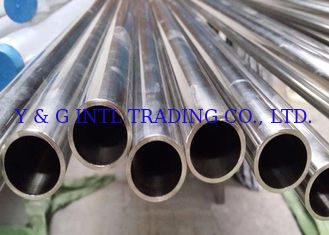

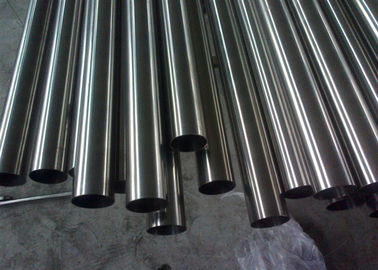

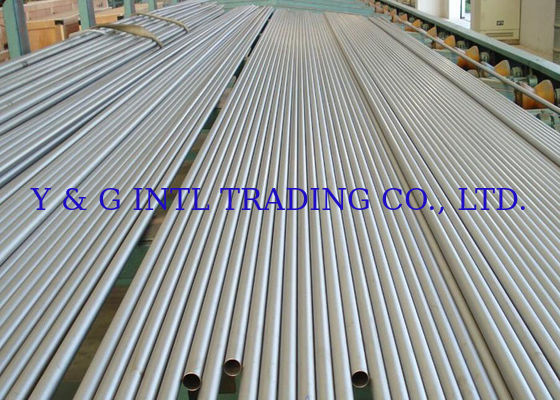

Hastelloy Pipe Nickel Alloy Tube Hastelloy C 2000 UNS N06200 Heat Ex - Changers Tube 25.4 * 1.65mm
Features: Hastelloy C-2000 is a versatile corrosion resistant alloy with excellent resistance to uniform corrosion in oxidizing or reducing environments. It resists all acids, especially hydrochloric, sulfuric and hydrofluoric acids, at wide temperature ranges, and also resists pitting corrosion, crevice corrosion and stress corrosion cracking induced by chlorides and other halide solutions.
Chemical Composition:
| % | Ni | Cr | Mo | Fe | W | Co | C | Mn | Si | P | S | V |
| min | balance | 22.0 | 15.0 | |||||||||
| max | 24.0 | 17.0 | 3.0 | 2.0 | 0.010 | 0.50 | 0.08 | 0.025 | 0.010 | 0.01 | 0.50 |
Product Types and Standards:
| Form | ASTM |
| Rod | B 574 |
| Plate, sheet and strip | B 575 |
| Seamless pipe and tube | B 622 |
| Welded pipe | B 619, B 775 |
| Welded tube | B 626, B 751 |
| Welding fitting | B 366 |
| Forged or rolled pipe flange and forged fitting | B 462 |
| Billet and bar for reforging | B 472 |
| Forging | B 564 |
Physical Properties:
| Density | 8.50 g/cm3 |
| Melting range | 1328-1358 ℃ |
Applications: Chemical process industry reactors, heat ex-changers, columns and piping; pharmaceutical industry reactors and dryers; and flue gas desulfurization system components.
Mark: As required.
