Product Details:
|
| Material: | C23000,C44300 | Standard: | B43, B135, B111 |
|---|---|---|---|
| Application: | Water Pipe | Technique: | Seamless |
| OD: | 5-350mm | Wall Thickness: | 0.5-50mm Or Customised |
| Packing: | Exporting Package/wooden Box /as Requirement. | ||
| Highlight: | seamless copper pipe,copper round tube |
||

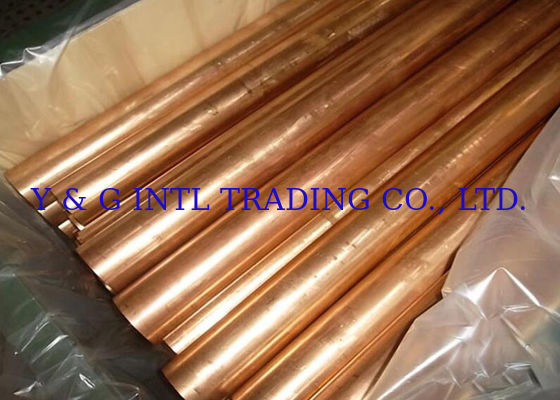

C23000 Tubes UNS C23000 CuZn15 Red Brass Tube , Seamless Tubes C23000 , Air Conditioning Copper Tubing , Brass Tube
Dimensions:
Outer diameter:5-350mm
Wall thickness: 0.5-50mm.
according to the buyers' requirements
Standard: ASTM B280/ ASTM B360/JIS H3300/BS EN12735/ASTM B88/B88M/ASTM B135/ASTM B43
Red Brass Tube Symbol:
| Grade | USA | UK | Germany | Japan | ||
| China BG | UNS | EN | DIN | No | JIS | |
| H85 | C23000 | CuZn15 | CW503L | CuZn15 | 2.0240 | C2300 |
Chemical Composition:
| Standard | Chemical Composition | ||||||||||||||
| Cn | Zn | Al | As | Ni | Fe | Mn | Pb | B | P | Si | S | C | Zn | Other | |
| C23000 | 84.0-86.0 | Rem | 0.05 | 0.05 | |||||||||||
Application: Red Brass Tube ASTM B43 C23000 red brass pipe, which is the most durable of all metals for commercial water pipe and has an excellent resistance against dezincification, season cracking and pitting. C230 has a good capacity for being hot formed and can be readily soldered or brazed. Copper alloy 230 has a rich inherent color, which has become extremely popular as an outdoor metal and has been found to be very important in modern architecture.used for condenser and heat ex-changers, Water Evaporators, Boiler Blow down Heat Ex-changers, air coolers, Gland Steam Condensers, Steam Ejector, Turbine Oil Coolers, Fuel Oil Heaters, Compressed Air Inter and After Coolers, Ferrules,Oil Well Pump Liner, and Distiller etc.
Mark: As required.
