Product Details:
|
| Material: | TP347/347H | Standard: | A312/SA312 |
|---|---|---|---|
| Type: | Seamless,Welded | OD: | 21.3~600mm |
| Wall Thickness: | 1.65~40mm | Application: | Aviation, Petrochemical |
| Surface Treatment: | Varnish, Oil-dip, Passivation, Phosphating, Shot Blasting | Delivery Status: | Annealed, Normalized, Normalized+Tempered, Etc |
| High Light: | stainless steel pipe,stainless steel round tube |
||

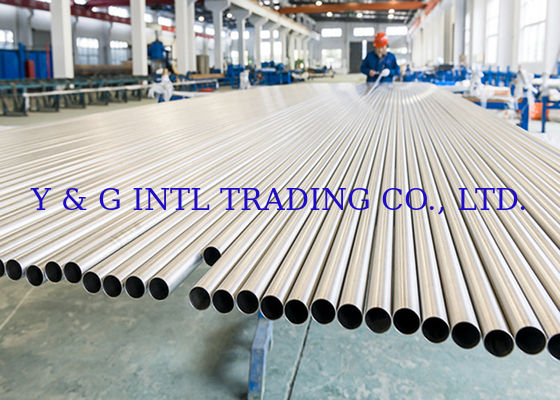

Stainless Steel Tubing Seamless Heat Exchanger Austenitic Steel Pipe ASTM A312 TP347 TP347H 323.8 × 28.58mm size
Product Standard: ASTM A312
Main steel grades: TP347 TP347H
Application:
Used in the oil and gas, chemical, pharmaceutical, fertilizer, argo-chemical, aerospace, desalination, food and beverage, sugar, distillery, power generation, cement, petroleum refinery, mechanical and structural, food processing , etc.
Chemical Composition & Mechanical Propertites:
| Chemical Composition % | ||||||||||
| Grade | UNS Designation | C | Mn | P | S | Si | Cr | Ni | Mo | Other |
| TP347 | S34700 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-13.0 | … | |
| TP347H | S34709 | 0.04-0.10 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-13.0 | … | |
| Mechanical Properties | |||
| Grade | UNS Designation | Tensile Strength, min ksi [Mpa] | Yield Strength, min ksi [Mpa] |
| TP347 | S34700 | 75 [515] | 30 [205] |
| TP347H | S34709 | 75 [515] | 30 [205] |
Mark: As required.
Inspection and Test: chemical composition test, mechanical properties test(tensile, yield, elongation), process properties test(flatting, flaring, bending, hardness, impact, etc.), appearance and size test, non-destructive inspection test, hydrostastic test.
Delivery status: Annealed,Pickled.
Surface treatment: oil impregnation, paint, passivation, phosphating, shot blasting etc.
Packing: Exporting package/wooden box /as requirement.
