Product Details:
|
| Material: | Titanium Gr.9 | Standard: | ASTM B338,GB/T3624-95 |
|---|---|---|---|
| Technique: | Seamless,Welded | OD: | 3~114mm |
| Wall Thickness: | 1~6mm | Mark: | As Required |
| Delivery Status: | Annealed, Normalized, Normalized+Tempered, Etc | ||
| High Light: | titanium welded tubes,small diameter titanium tubing |
||

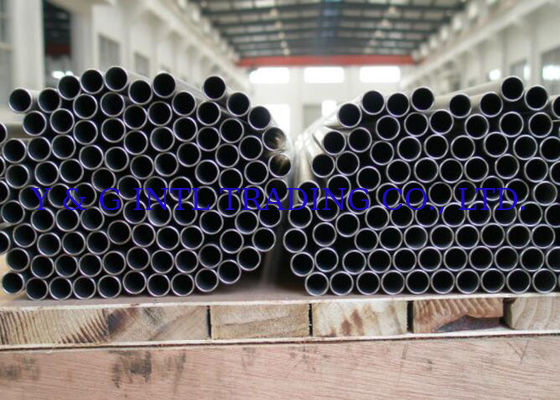

Titanium Alloy Seamless Tube Gr.9 Titanium Tube Cold Drawn Tube
Titanium Grade 9 has medium strength that falls between Grade 4 and Grade 5. It has excellent corrosion resistance and is used in Aerospace and Industrial applications. Grade 9 Titanium can be used at higher temperatures than Grades 1 through 4. Grade 9 titanium has good cold rolling properties.
Product Standard: ASTM B338,GB/T3624-95,GB/T3625-2007,GB/T3625-95
Grades: Grade 9
Advantage:
Medium Strength Titanium
Good Weldability
Good Cold Forming
Suitable for Mild Oxidizing Media
Chemical composition :
| Grade | Chemical composition | ||||||||||||
| 9 | O | N | C | H | Fe | AL | V | Ni | Mo | Pd | Others | Residuals | Ti |
| 0.15Max. | 0.03Max | 0.08Max | 0.015Max. | 0.25Max | 2.5-3.5 | 2.0-3.0 | 0. 4Max. | Bal | |||||
Inspection and Test: chemical composition test, mechanical properties test(tensile, yield, elongation), process properties test(flatting, flaring, bending, hardness, impact, etc.), appearance and size test, non-destructive inspection test, hydrostastic test.
Delivery status: Annealed, normalized, normalized+Tempered, etc.
Surface treatment: oil impregnation, paint, passivation, phosphating, shot blasting etc.
Packing: Exporting package/wooden box /as requirement.
