Product Details:
|
| Material: | Alumina Ceramic | Alumina Content: | 13% ~23% Or Specified |
|---|---|---|---|
| Type: | Cross Partition Ring | Size: | 6, 10, 16mmm... |
| Thickness: | 0.5mm-30mm | Purity: | 95%-99.7% |
| Density: | 3.6-3.9g/cm3 | Application: | Industrial Ceramic |
| High Light: | ceramic structured packing,ceramic saddle packing |
||

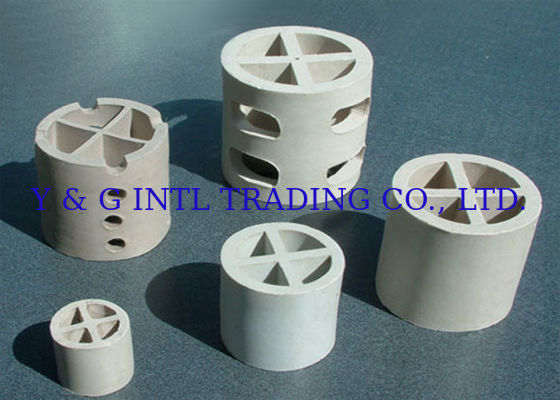

Ceramic Random Packing Ceramic Cross Partition Ring With Excellent Acid Resistant Properties
We bring forth Cross Partition Ring, which is an improved design over the basic raschig ring. The improved element is a cross partition in the raschig ring. This structure of these rings is helpful in enlarging the surface and improving efficiency of transfers. Moreover, the large size of these rings can only be used in structured packing. In the current form, Cross Partition Rings need a lot of support in the bottom most part of the random tower.Pls send inquiry for more than 5 TON.
Specification of Ceramic Cross Partition Ring:
| Specifications (mm ) | OD*ID*H*δ (mm) |
Specific surface area (m2/m3) | Void volume (m3/m3) |
Bulk number (n/m3) |
Bulk density (kg/m3) |
Dry packing (factor m-1) |
| Φ25 | 25*25*3 | 160 | 0.48 | 41000 | 660 | 582 |
| Φ50 | 50*50*5 | 145 | 0.50 | 6400 | 600 | 565 |
| Φ80 | 80**80*8 | 120 | 0.56 | 1950 | 820 | 356 |
| Φ100 | 100*100*10 | 110 | 0.53 | 1000 | 850 | 252 |
| Φ120 | 120*120*12 | 75 | 0.55 | 370 | 860 | 146 |
| Φ150 | 150*150*15 | 60 | 0.58 | 295 | 650 | 101 |
Features: excellent acid resistant properties, the ability of reisting various inorganic acid, organic acids and organic solvents corrosion(except HF acid), high temperature in a variety of occasions, c can be used at various high temperatures.
Application: wide range of applications, can be used for chemical industry, metallurgy, gas and environmental protection industries in the drying tower, absorption tower, cooling tower, scrubber, regeneration tower.
