Product Details:
|
| Material: | 5082 , 5052, 5A05,5083... | Standard: | B234M,GB/T6893-2000 |
|---|---|---|---|
| Type: | Seamless | Application: | Fuel Tanks |
| OD: | 2-2500mm | Wall Thickness: | 0.5-150mm Or Customised |
| Packing: | Exporting Package/wooden Box /as Requirement. | ||
| High Light: | thin wall aluminum tubing,seamless aluminum pipe |
||

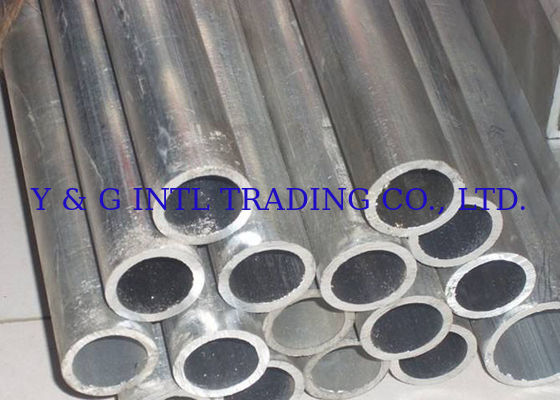

Anti - Rust 5000 Series 5082 / 5052 Hollow Aluminum Tube Al - Mg - Si Alloy Pipe With Good Shape Processing Performance
5082: 5082 aluminum alloy is Al-Mg-Si alloy, the use of a wide range, especially the construction industry is inseparable from the alloy, is the most promising alloy. Good corrosion resistance, excellent weldability, good cold workability, and medium strength. 5082 of the main alloying elements for the magnesium, with good shape processing performance, corrosion resistance, weldability, medium strength.
Production Description:
| Item | 5000 Series 5082 Seamless Aluminum Tube |
| Surface Treatment | Mill finish, Anodizing, Powder coating, Electrophoresis, sandblasting etc. |
| Deep processing ability | Drill hole, stretch bending, milling, welding, fabrication etc. |
| Production Capacity | 5,000MT/month |
| Tooling | Available |
| Fabrication ability | Hole drilling, bending, ,welding, punching, brushing and etc. |
| Thickness | Above 0.5mm or customized. |
| Length | According to your requirement and also the max length which could be fit for 20&” and 40&” container |
Chemical Composition:
| Grade | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Zr | Al |
| 5082 | 0.2 | 0.35 | 0.15 | 0.15 | 4.0-5.0 | 0.15 | — | 0.25 | 0.10 | — | Balance |
Mechanical Properties:
| Grade | Temper | Wall Thickness(mm) | Tensile Strength(Mpa) | Yield strength(Mpa) | Elongation(%) |
|
5082 |
O | All | 270-350 | ≥110 | ≥14 |
| H112 | All | ≥270 | ≥110 | ≥12 |
Applications: Due to good shape processing performance, corrosion resistance, weldability, medium strength, it is used for the manufacture of fuel tanks, tubing, instrumentation, street lamp stent, metal products, electrical enclosures and so on.
Mark: As required.
