Product Details:
|
| Material: | Titanium Gr. 11 | Standard: | ASTM B338,B337 |
|---|---|---|---|
| Technique: | Seamless,Welded | OD: | 3~114mm |
| Wall Thickness: | 1~6mm | Surface Treatment: | Varnish, Oil-dip, Passivation, Phosphating, Shot Blasting |
| Delivery Status: | Annealed, Normalized, Normalized+Tempered, Etc | ||
| High Light: | small diameter titanium tubing,titanium alloy tube |
||

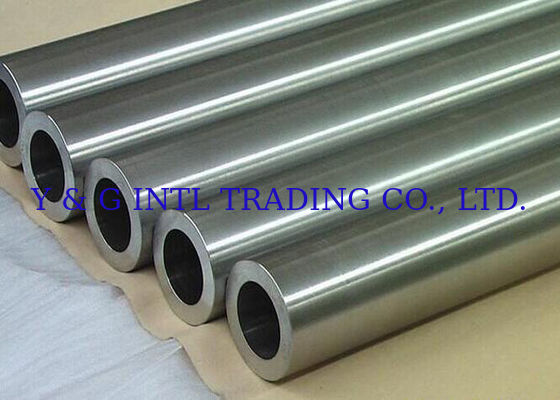

Seamless Titanium Tubing Titanium Alloy Tube Cold Rolled Gr. 9 Gr.11 Gr.2 For Heat Exchanger
Grades: Grade 11
Characteristics:
Ti Grade 11, is the same as Grade 1, but with Pd for better corrosion resistance. Grade 11 has optimum ductility and cold formability. It has also useful strength, high-impact toughness and excellent weldability.
Chemical composition :
| Grade | Chemical composition | ||||||||||||
| 11 | O | N | C | H | Fe | AL | V | Ni | Mo | Pd | Others | Residuals | Ti |
| 0.18Max. | 0.03Max | 0.08Max | 0.015Max. | 0.20Max | 0.12-0.25 | 0. 4Max. | Bal | ||||||
Mark: As required.
Inspection and Test: chemical composition test, mechanical properties test(tensile, yield, elongation), process properties test(flatting, flaring, bending, hardness, impact, etc.), appearance and size test, non-destructive inspection test, hydrostastic test.
Delivery status: Annealed, normalized, normalized+Tempered, etc.
Surface treatment: oil impregnation, paint, passivation, phosphating, shot blasting etc.
Packing: Exporting package/wooden box /as requirement.
