Product Details:
|
| Material: | Titanium Gr.9 | Standard: | GB/T3624-95,GB/T3625-2007,GB/T3625-95 |
|---|---|---|---|
| Technique: | Seamless,Welded | OD: | 3~114mm |
| Wall Thickness: | 1~6mm | Surface Treatment: | Varnish, Oil-dip, Passivation, Phosphating, Shot Blasting |
| Delivery Status: | Annealed, Normalized, Normalized+Tempered, Etc | ||
| High Light: | titanium welded tubes,small diameter titanium tubing |
||

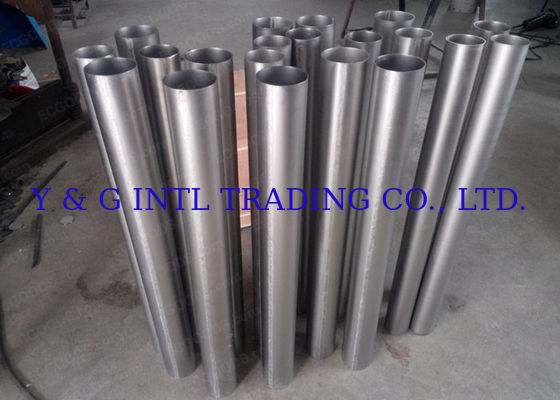

Seamless Titanium Tubing Titanium Alloy seamless Tube Gr.9 Cold Drawn Cold Rolled Gr.9 Titanium Pipe
Product Standard: GB/T3624-95,GB/T3625-2007,GB/T3625-95
Grades: Grade 9
Characteristics:
Ti Grade 9, is sometimes referred to as "half 6-4". It offers 20-50% higher strength than C.P. grades, but is more formable and weldable than Ti-6AI-4V. Grade 9 combines strength, weldability and formability. The alloy has excellent formability plus higher tensile strength than the strongest unalloyed grade.
Chemical composition :
| Grade | Chemical composition | ||||||||||||
| 9 | O | N | C | H | Fe | AL | V | Ni | Mo | Pd | Others | Residuals | Ti |
| 0.15Max. | 0.03Max | 0.08Max | 0.015Max. | 0.25Max | 2.5-3.5 | 2.0-3.0 | 0. 4Max. | Bal | |||||
Mark: As required.
Inspection and Test: chemical composition test, mechanical properties test(tensile, yield, elongation), process properties test(flatting, flaring, bending, hardness, impact, etc.), appearance and size test, non-destructive inspection test, hydrostastic test.
Delivery status: Annealed, normalized, normalized+Tempered, etc.
Surface treatment: oil impregnation, paint, passivation, phosphating, shot blasting etc.
Packing: Exporting package/wooden box /as requirement.
