Product Details:
|
| Model Number: | Blind Flange | Standard: | ANSI, Bs, DIN, GB, JIS, Jpi, ASME |
|---|---|---|---|
| Surface Treatment: | Galvanized | Connection: | Weldimg |
| Application: | Boiler And Pressure Vessel, Petroleum, Chemicals, Oil And G | Certificate: | ISO9001 |
| Pressure: | ANSI:150bls-2500bls | ||
| High Light: | 1/2" carbon steel blind flange,rf carbon steel blind flange,asme b16.5 blind flange carbon steel |
||
| Material | Carbon Steel | ASTM A105, LF2, CL1 / CL2 |
| 16MN,20# | ||
| Stainless Steel | ASTM A182, F304 / 304L, F316 / 316L,A182F317/317L,A182F310,F321,F347,316Ti | |
| Alloy Steel | ASTM A182 A182 F12,F11,F22,F5,F9,F91,F51,F53,F55,F60,F44,F304H,F316H,F317H,F321H,F347H,INCONEL 600,625,825,etc. | |
| Standard | ANSI B16.5 | Class 150 Flanges-Class 2500 Flanges |
| DIN | 6Bar 10Bar 16Bar 25Bar 40Bar 63Bar | |
| JIS | 5K Flanges-30K Flanges | |
| EN1092-1 | 6Bar 10Bar 16Bar 25Bar 40Bar 63Bar 100Bar | |
| Type | 1. Plate Flange 2. Flat Flange 3. Slip on Flange 4. Welding Neck Flange 5.Long Welding Neck Flange 6. Blind Flange 7. Socket Welding Flange 8. Thread Flange 9. Screwed Flange 10. Lap Joint Flange. etc. | |
| Connection Type | Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female, Large Tongue, Groove, Small-Tongue, Groove, etc | |
| Size | 1/2"-100",SCH5S-SCH160S,XS,XXS,STD | |
| Heat Treatment | Normalizing, Annealing, Quenching Tempering | |
| Applications | Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry,and general pipes connecting projects etc. | |

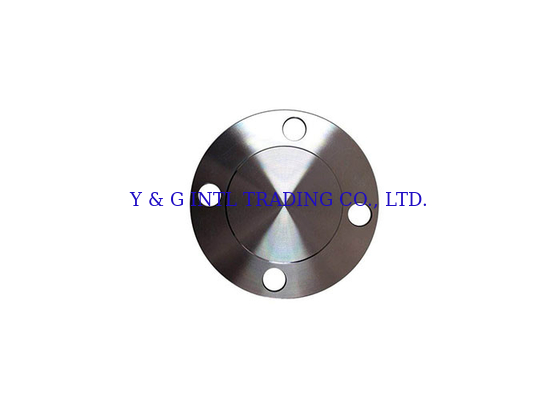

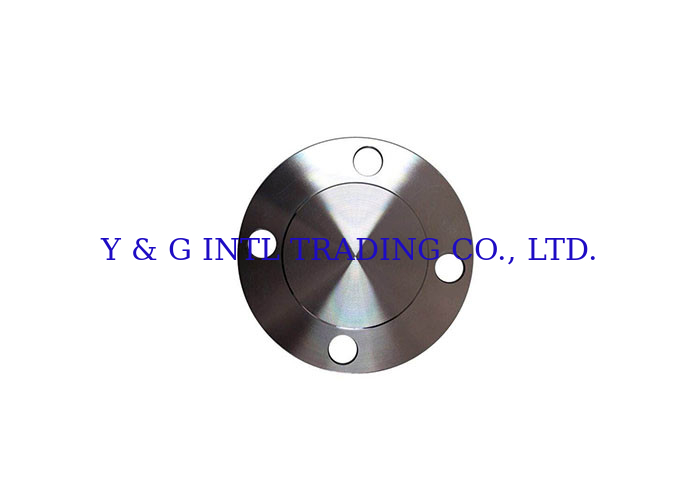

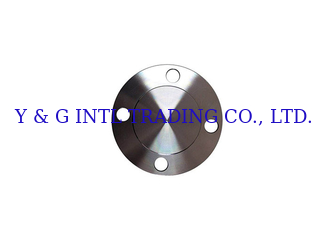

Blind flange is also called blind plate, and its proper name is flange cover. It is a flange without holes in the middle
for sealing the pipe plug. Ansi asme b16.5 a105 flange have many types of sealing surface, such as plane, convex
, concave and convex, tenon and groove surface, and ring connection surface.
