Product Details:
|
| Material: | 300 Series Stainless Steel | Standard: | ASTM, ASTM A269 ASTM A213 ASTM A270 |
|---|---|---|---|
| Application: | Heat Exchanger, Boiler Etc. | Grade: | Stainless Steel |
| Brand: | Y & G | Length: | MAX. 30M |
| Section Shape: | Round | Surface Finish: | BA |
| Certification: | ISO | ||
| High Light: | astm a213 u bend pipe,astm a269 stainless steel u tube,316 stainless steel u tube |
||

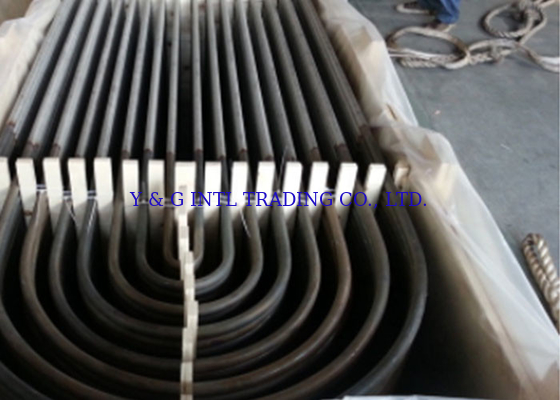

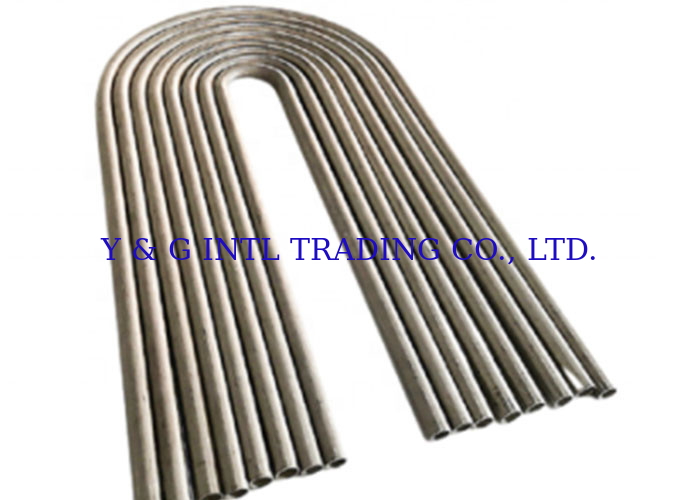

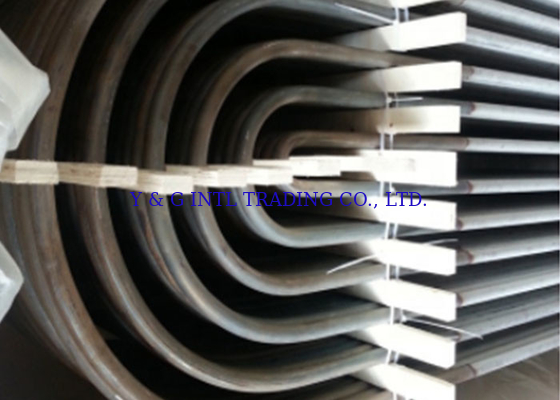

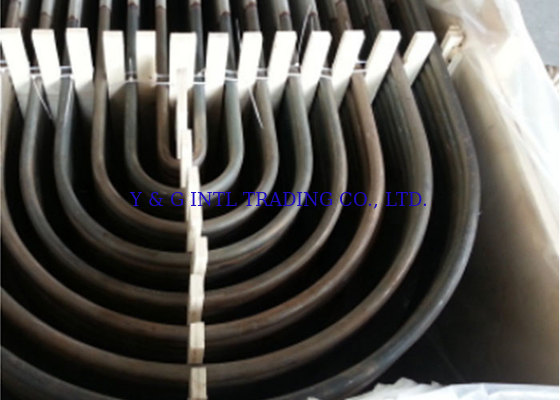

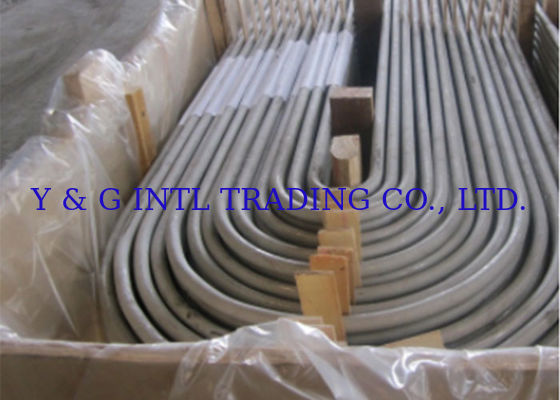

ASTM A269 ASTM A213 ASTM A270 316 U bend seamless stainless steel tube coil tubing U TUBE
| Detailed Product Description | |||
| Material: | TP347 / TP347H | Technology: | Cold Rolled |
| Surface: | Polished / Bright Annealed | Delivery Condition: | Soft / Hard |
| Type: | Seamless | NDT: | Eddy Current Or Hydraulic Test |
Advantage
1. Superior surface finish
2. better mechanical property
3. more precise dimension
4. perfect inspection method and inspection equipment
| Grade | TP 304 ; TP304H ; TP304L ; TP316 ; TP316L ; TP 321 ; TP321H ; TP317L ; TP310S ; TP347H |
| Standard | ASTM A213 , ASTM A 269 , ASTM A 270 , EN10216-5 ; ASTM B 622 ; ASTM B516 ; ASTM A789 , etc |
| Size | OD: 25.4mm |
| WT: 2.11 | |
| Length: 12192mm |
| Material Grade | |
| American Standard | TP304 , TP304L , TP310S , TP316 , TP316L , TP316Ti , TP321 , TP347 , 904L , S31803 Etc |
| European Standard | 1.4301 , 1.4306 , 1.4845 , 1.4401 , 1.4404 , 1.4571 , 1.4541 , 1.4550 , 1.4539 , 1.4462 Etc |
| German Standard | X5CrNi18-10 , X2CrNi19-11 , X12CrNi25-21 , X5CrNi17-12-2 , X5CrNi17-12-3 , X2CrNiMo18-14-3 , X6CrNiTi18-10 , X6CrNiTb18-10 Etc |
Application
Boiler tube applies to petroleum, chemical industry, electric power, boiler, high temperature resistant, low temperature resistant, corrosion-resistant. The size can be made according to the customer's requirements. A high-pressure boiler pipe applies to the container, petrochemical, and so on. Note: Generally, high-pressure boiler pipe’s working pressure above 9.88Mpa and working temperature between 450 to 650.
