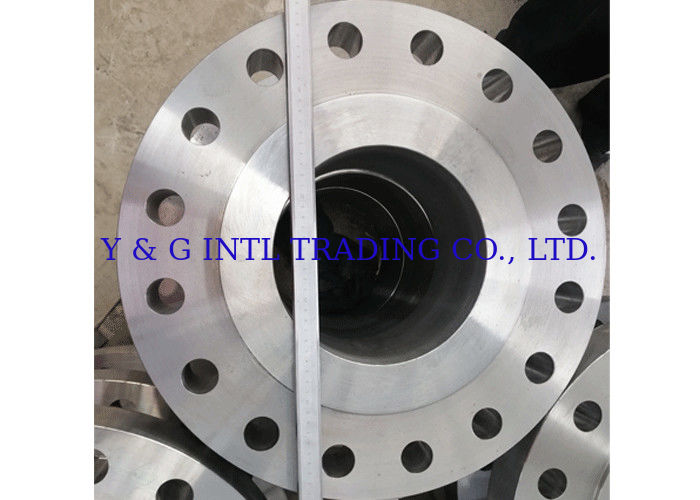

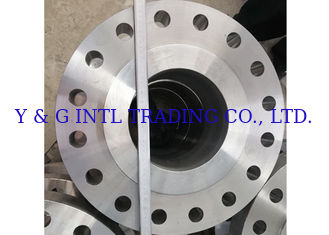

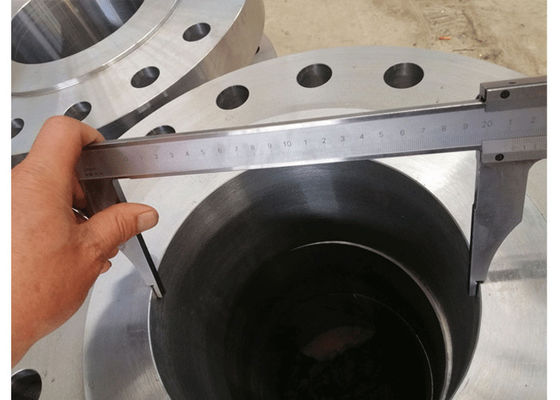

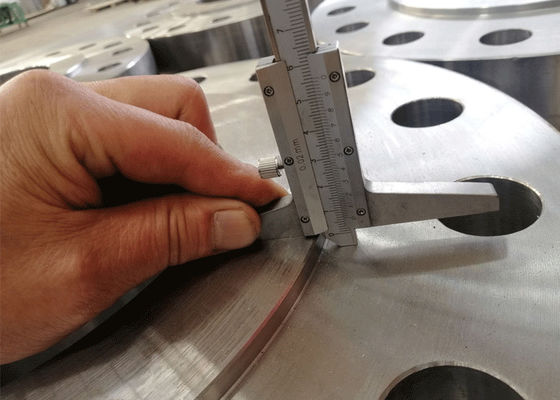

Forged 80inch Weld Neck Fittings And Flanges Carbon Steel / F316H Stainless Steel

Forged 80inch Weld Neck Fittings And Flanges Carbon Steel / F316H Stainless Steel
Forged 80inch Weld Neck Fittings And Flanges Carbon Steel / F316H Stainless Steel Forged 80inch Weld Neck Fittings And Flanges Carbon Steel / F316H Stainless Steel Forged 80inch Weld Neck Fittings And Flanges Carbon Steel / F316H Stainless Steel

Large Image :  Forged 80inch Weld Neck Fittings And Flanges Carbon Steel / F316H Stainless Steel

Product Details:
Brand Name: Y & G
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Exporting package/wooden box / per customers’ requirement
Delivery Time: 25-35 days
Payment Terms: L/C, T/T
Supply Ability: 8000MT/Month

Forged 80inch Weld Neck Fittings And Flanges Carbon Steel / F316H Stainless Steel

Description
Material: F316H,F317,F317L,F347H,S32760,S32750,HDR,N08811,Q235B Standard: ASME B16.5,ASME B16.48,API 590,DIN 2641~2642,JIS F7806-1996
Technics: Forging Type: Forged Weld Neck Flange
Size: 1/2 - 80inch Application: Industrial
Package: Wooden Box Or Seaworthy Package
High Light:

F316H weld neck fittings

,

80inch weld neck fittings

,

F316H fittings and flanges

Forged Weld Neck Flange fittings Carbon Steel / Stainless Steel



Pipe flanges are protruding rims, edges, ribs, or collars used to make a connection between two pipes or between apipeand any type of fitting or equipment component. Pipe flanges are used for dismantling piping systems, temporary or mobile installations, transitions between dissimilar materials, and connections in environments not conducive to solvent cementingA.

A weld neck flange is a type of steel flange designed to transfer stresses to the pipe to reduce high stress concentrations at the base of the flange. Compared with other types,weld neck flanges are know for their tapered hub and gentle transition from flange thickness to pipe wall thickness. They are deformation-resistant, and are normally used for high pressure piping system, high or low temperature conditions.



Drawing:

Forged 80inch Weld Neck Fittings And Flanges Carbon Steel / F316H Stainless Steel 0





Type Pressure Capacity Pipe Sizes Applications / Advantages
Blind Very high All Closing pipes, flow pressure testing
Lap joint Low All Systems requiring frequent disassembly
Slip-on Low All Low installation cost, simple assembly
Socket weld High Small Smooth bore for better fluid flow
Threaded Low Small Attachment without welding
Welding neck High All High pressures and extreme temperatures




Application: Due to its good comprehensive performance, flange is widely used in basic projects such as chemicals, construction, water supply, drainage, petroleum, heavy and heavy industries, refrigeration, hygiene, water heating, fire protection, electricity, aerospace, and shipbuilding.





Q1: Wonder if you accept small orders?

A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.



Q2: Can you send products to my country?

A2: Sure, we can. If you do not have your own ship forwarder, we can help you.



Q3: Can you do OEM for me?

A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.



Q4: What's your payment terms ?

A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.



Q5: How long is your production lead time?

A5:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.



Q7: When can I get the quotation ?

A7: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.



Forged 80inch Weld Neck Fittings And Flanges Carbon Steel / F316H Stainless Steel 1
