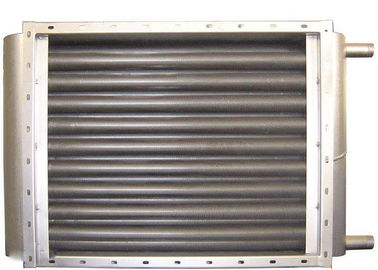

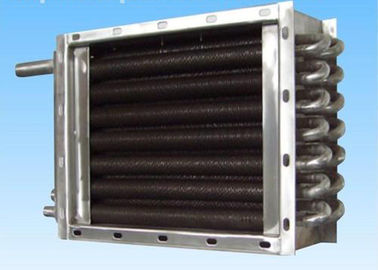

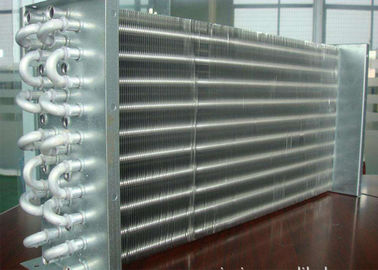

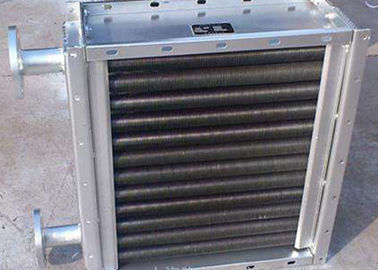

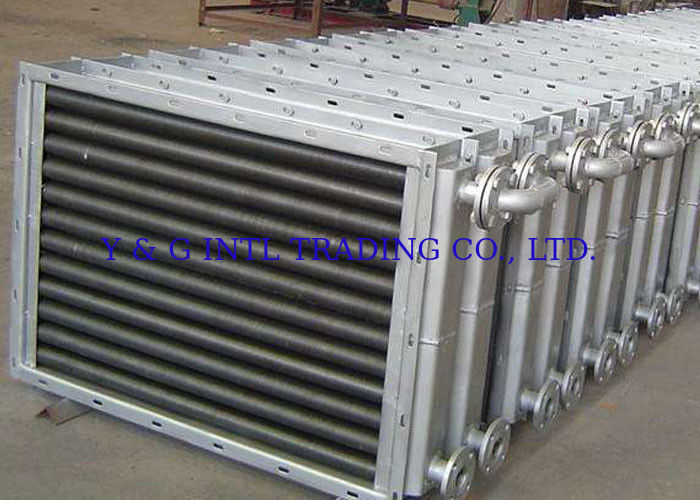

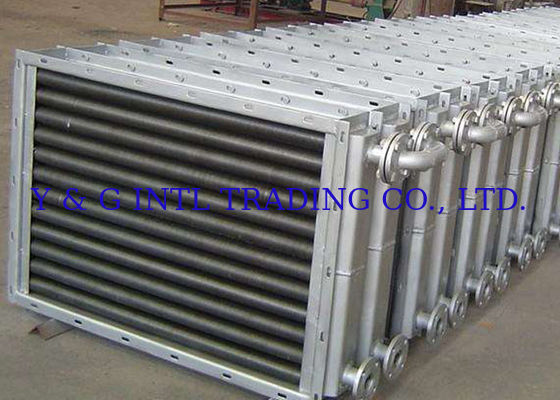

Aluminum Fin Air To Air Heat Exchanger Equipment 1 - 50 Tons 1600 * 1600mm

Certification
China Y & G International Trading Company Limited certification
China Y & G International Trading Company Limited certification
Customer Reviews
They have more than 10 years experience in exporting products to worldwide countries, can provide the high quality products!

—— Ibnu Pranawannre

Every process will be checked by responsible QC which insures every product's quality.

—— Ridwaddn Hamdanif

I'm Online Chat Now

Aluminum Fin Air To Air Heat Exchanger Equipment 1 - 50 Tons 1600 * 1600mm

Aluminum Fin Air To Air Heat Exchanger Equipment 1 - 50 Tons 1600 * 1600mm
Aluminum Fin Air To Air Heat Exchanger Equipment 1 - 50 Tons 1600 * 1600mm Aluminum Fin Air To Air Heat Exchanger Equipment 1 - 50 Tons 1600 * 1600mm Aluminum Fin Air To Air Heat Exchanger Equipment 1 - 50 Tons 1600 * 1600mm Aluminum Fin Air To Air Heat Exchanger Equipment 1 - 50 Tons 1600 * 1600mm Aluminum Fin Air To Air Heat Exchanger Equipment 1 - 50 Tons 1600 * 1600mm

Large Image :  Aluminum Fin Air To Air Heat Exchanger Equipment 1 - 50 Tons 1600 * 1600mm

Product Details:
Brand Name: Y&G
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Strong Plywood Case With Steel Frame
Delivery Time: 25~35days
Payment Terms: L/C, T/T
Supply Ability: 8000MT per month

Aluminum Fin Air To Air Heat Exchanger Equipment 1 - 50 Tons 1600 * 1600mm

Description
Liquid Flow Rate: 2.5m/s Weight: 1~50 Tons
Dimension(L*W*H): 1600*1600mm Application: Chemical .Oil Etc
Packing: Strong Plywood Case With Steel Frame
High Light:

air cooled heat exchanger

,

plate heat exchanger

china direct factory Tube and Shell aluminum fin air to air heat exchanger

Shell & tube heat exchangers

Shell and tube heat exchanger is one of the most typical partition type heat exchangers. It has a long history of application in industry and lays a dominant position among all heat exchangers until now.

The Shell & tube heat exchangers symbolize another important area of our production.

We have built coolers with various types and sizes. The field of application are numerous: chemical, energy, power generation, petrochemical and industrial sectors.

The bundles may consist of tubes smooth or finned( type trufin), straight or bent U-shaped, welded or expanded to tube plates.

Construction types:

---removable cover headers

---fixed tube bundle

Main materials:

carbon steel and low alloy steels, stainless steels, super stainless steels or austenitic ferritic, such as duplex, super duplex, copper, nyckel and aluminum alloys.

Shell and tube heat exchanger is one of the most typical partition type heat exchangers. It has a long history of application in industry and lays a dominant position among all heat exchangers until now.
Product Characteristics
A.High heat transfer
B.Wide scope of application
C.Applicable to various complications
D.Compact in structure, small in size
E.Convenient for maintenance and repair
Applicable Scope
The series is applicable to industries of chemical, petrochemical power, papermaking, glass, and pharmacy needing heat exchange as well as those of civil, defense, and atomic energy, etc.

FIN TUBE REFERENCE
TYPE NAME BARE TUBE FIN TUBE BARE TUBE FIN SPECIFICATION (MM)
MATERIAL MATERIAL DIAMETER FIN PITCH FIN HEIGHT FIN THICK
EMBEDDED G-TYPE FIN TUEB CARBON STEEL ALUMINUM 16-63 2.1-5 <17 ~0.4
COPPER,STAINLESS STEEL,ALLOY
EXTRUDED SINGLE METAL CARBON STEEL, COPPER COPPER 8-51 1.6-10 <17 0.2-0.4
COMBINED METAL STAINLESS STEEL,ALLOY ALUMINUM
LOW FIN TUBE CARBON STEEL, COPPER / 10-38 0.6-2 <1.6 ~0.3
T-TYPE FIN TUBE STAINLESS STEEL,ALLOY
BAMBOO TUBE CARBON STEEL,COPPER / 16-51 8-30 <2.5 /
CORRUGATED TUBE STAINLESS STEEL
WOUND L/KL/LL TYPE CARBON STEEL, COPPER COPPER 16-63 2.1-5 <17 ~0.4
FIN TUBE STAINLESS STEEL,ALLOY ALUMINUM
STRING STRING FIN TUBE ALUMINUM,COPPER ALUMINUM,COPPER 25-38 2.1-3.5 <20 0.2-0.5
CARBON STEEL CARBON STEEL
STAINLESS STEEL STAINLESS STEEL
U-TYPE U-TYPE TUBE CARBON STEEL,COPPER / 16-38 / / /
STAINLESS STEEL
WELDING HF-WELDING CARBON STEEL, ALLOY CARBON STEEL, ALLOY 16-219 3-25 5-30 0.8-3
FIN TUBE STAINLESS STEEL STAINLESS STEEL
H/HH TYPE CARBON STEEL, ALLOY CARBON STEEL, ALLOY 25-63 8-30 <200 1.5-3.5
FIN TUBE STAINLESS STEEL STAINLESS STEEL
STUDED FIN TUBE CARBON STEEL, ALLOY CARBON STEEL, ALLOY 25-219 8-30 5-35 Φ5-20
STAINLESS STEEL STAINLESS STEEL

Aluminum Fin Air To Air Heat Exchanger Equipment 1 - 50 Tons 1600 * 1600mm 0
