Product Details:
|
| Material: | TP304, TP304H, TP309H, TP316H... | Standard: | ASTM A312 |
|---|---|---|---|
| Type: | Welded/Seamless | OD: | 1/4 NPS~92 NPS |
| Wall Thickness: | SCH5S~SCH XXS | Mark: | As Required |
| Surface Treatment: | Varnish, Oil-dip, Passivation, Phosphating, Shot Blasting | Delivery Status: | Annealed, Normalized, Normalized+Tempered, Etc |
| High Light: | stainless steel pipe,stainless steel round tube |
||

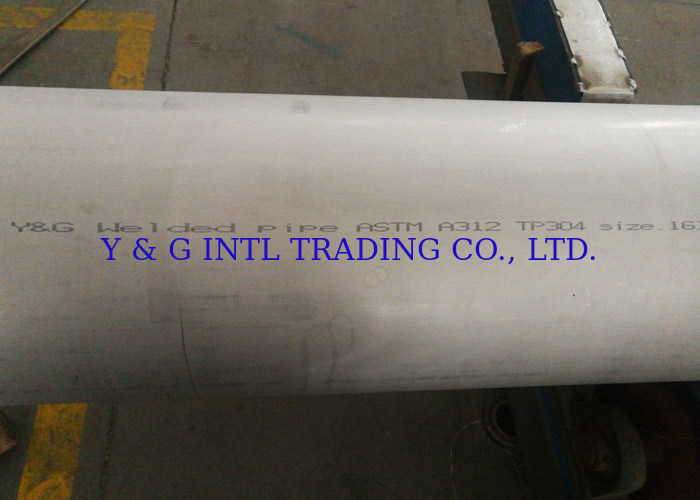

Stainless Steel Tubing ASTM A312 / A312M TP304 Welded Tube
ASTM A312 specification covers seamless and welded austenitic stainless steel pipes used for high temperature and/or corrosive service (the most common grades are 304/304L and 316/316L).
Main steel grades: TP304, TP304H, TP309H, TP316H...
Chemical Composition & Mechanical Properties:
| SS Pipes Grade | UNS | C | Mn | P | S | Si | Cr | Ni | Mo | Ti | Nb | N |
| TP304 | S3040 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | ||||
| TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | ||||
| TP304H | S30409 | 0.04-0.10 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | ||||
| TP304N | S30451 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-18.0 | 0.10-0.16 | |||
| TP304LN | S30453 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-12.0 | 0.10-0.16 | |||
| TP309S | S30908 | 0.08 | 2 | 0.045 | 0.03 | 1 | 22.0-24.0 | 12.0-15.0 | 0.75 | |||
| TP309H | S30909 | 0.04-0.10 | 2 | 0.045 | 0.03 | 1 | 22.0-24.0 | 12.0-15.0 | ||||
| TP310S | S3108 | 0.08 | 2 | 0.045 | 0.03 | 1 | 24.0-26.0 | 19.0-22.0 | 0.75 | |||
| TP310H | S3109 | 0.04-0.10 | 2 | 0.045 | 0.03 | 1 | 24.0-26.0 | 19.0-22.0 | ||||
| TP316 | S3160 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |||
| TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | |||
| TP316H | S31609 | 0.04-0.10 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |||
| TP316N | S31651 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | 0.10-0.16 | ||
| TP316LN | S31653 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | 0.10-0.16 | ||
| TP317 | S3170 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 10.0-14.0 | 3.0-4.0 | |||
| TP317L | S31703 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 11.0-15.0 | 3.0-4.0 | |||
| TP321 | S3210 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-12.0 | 0.1 | |||
| TP321H | S32109 | 0.04-0.10 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-12.0 | 0.1 | |||
| TP347 | S3470 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-13.0 | ||||
| TP347H | S34709 | 0.04-0.10 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-13.0 | ||||
| TP348 | S3480 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-13.0 | ||||
| TP348H | S34809 | 0.04-0.10 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-13.0 |
| SS Pipes Grade | Tensile Strength | Yield Strength | Elongation |
| ASTM A312/ASME SA312 | N/mm2 (min) | N/mm2 (min) | % (min) |
| TP304 | 515 | 205 | 35 |
| TP304L | 485 | 170 | 35 |
| TP316 | 515 | 205 | 35 |
| TP316L | 485 | 170 | 35 |
Mark: As required.
Inspection and Test: chemical composition test, mechanical properties test(tensile, yield, elongation), process properties test(flatting, flaring, bending, hardness, impact, etc.), appearance and size test, non-destructive inspection test, hydrostastic test.
Delivery status: Annealed, normalized, normalized+Tempered, etc.
Surface treatment: oil impregnation, paint, passivation, phosphating, shot blasting etc.
Packing: Exporting package/wooden box /as requirement.
