Product Details:
|
| Material: | Titanium Gr.5 | Standard: | ASTM B 381 |
|---|---|---|---|
| Technique: | Seamless | OD: | 3mm~114mm |
| Wall Thickness: | 1~6mm | Mark: | As Required |
| Package: | Sea-worthy Package | ||
| High Light: | titanium welded tubes,small diameter titanium tubing |
||

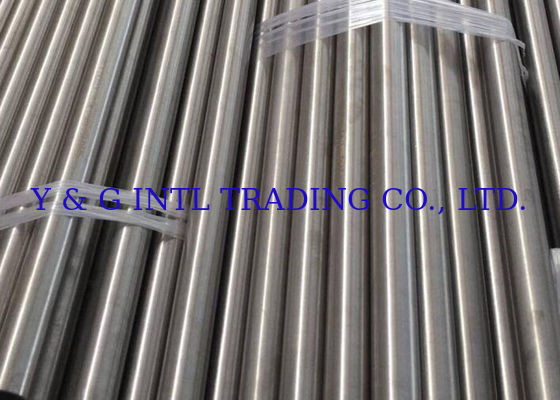

Titanium Alloy Tube ASTM B381 Gr 5 Seamless Titanium Tubing
Ti-6Al-4V, Titanium Grade 5 alloy (UNSR56400) is the most widely used titanium grade. It is a two phase α+β titanium alloy, with aluminum as the alpha stabilizer and vanadium asthe beta stabilizer. This high-strength alloy can be used at cryogenic to about 800°F (427°C). Ti-6Al-4V, Grade 5 alloy is used inthe annealed condition and in the solution treated and aged condition.
Product Standard: ASTM B 381
Grades: Grade 5
Characteristics:
Ti Grade 5 has very high strength but relatively low ductility. The main application of this alloy is in aircraft and spacecraft. Offshore use is growing. The alloy is weldable and can be precipitation hardened.
Chemical composition :
| Grade | Chemical composition | ||||||||||||
| 5 | O | N | C | H | Fe | AL | V | Ni | Mo | Pd | Others | Residuals | Ti |
|
0.20 Max. |
0.05 Max |
0.08 Max |
0.015 Max. |
0.40 Max |
5.5-6.75 | 3.5-4.5 | 0. 4Max. | Bal | |||||
Mark: As required.
Inspection and Test: chemical composition test, mechanical properties test(tensile, yield, elongation), process properties test(flatting, flaring, bending, hardness, impact, etc.), appearance and size test, non-destructive inspection test, hydrostastic test.
Applications: compressor blades, discs, and rings for jetengines; airframe and space capsule components; pressure vessels; rocketengine cases; helicopter rotor hubs; fasteners; critical forgingsrequiring high strength-to-weight ratios.
