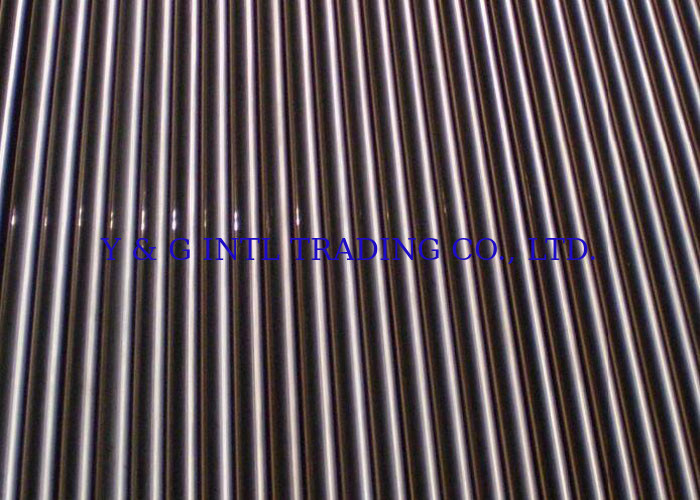

C71640 CuNi Seamless Copper Nickel Tubing For Heat Exchanger Casing

C71640 CuNi Seamless Copper Nickel Tubing For Heat Exchanger Casing
C71640 CuNi Seamless Copper Nickel Tubing For Heat Exchanger Casing C71640 CuNi Seamless Copper Nickel Tubing For Heat Exchanger Casing C71640 CuNi Seamless Copper Nickel Tubing For Heat Exchanger Casing C71640 CuNi Seamless Copper Nickel Tubing For Heat Exchanger Casing C71640 CuNi Seamless Copper Nickel Tubing For Heat Exchanger Casing

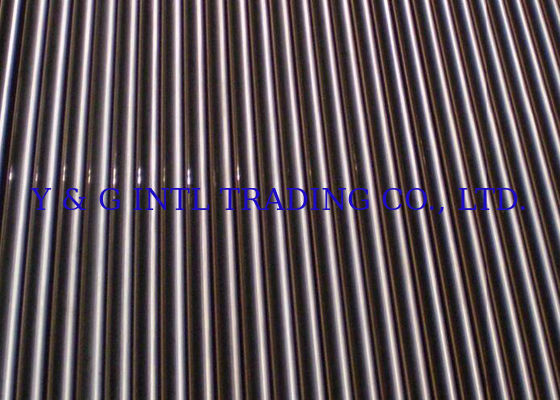

Large Image :  C71640 CuNi Seamless Copper Nickel Tubing For Heat Exchanger Casing

Product Details:
Brand Name: Y&G
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Wooden cases, weave strips,as requirement.
Delivery Time: 25~35days
Payment Terms: L/C, T/T
Supply Ability: 8000MT per month

C71640 CuNi Seamless Copper Nickel Tubing For Heat Exchanger Casing

Description
Material: C71640 Standard: ASTM B111
Application: Condenser, Evaporator... Technique: Seamless
Wall Thickness: 5-350mm OD: 0.5-50mm Or Customised
Packing: Exporting Package/wooden Box /as Requirement.
High Light:

seamless copper tube

,

seamless copper pipe

C71640 CuNi (66/30/2/2) Seamless Copper Nickel Tube



C71640 copper-nickel is a copper-nickel alloy formulated for primary forming into wrought products. It has a moderately high base cost and a moderately high embodied energy among wrought copper-nickels.



Standard: ASTM B111, B466

Chemical Composition & Mechanical Properties

Steel Grade Cu Sn Al As Ni Fe Mn Pb Zn
C70400 Remain - - - 4.8-6.2 1.3-1.7 0.3-0.8 0.05 max 1.0 max
C70600 Remain - - - 9.0-11.0 1.0-1.8 1.0 max 0.05 max 1.0 max
C71500 Remain - - - 29.0-33.0 0.4-1.0 1.0 max 0.05 max 1.0 max
C71640 Remain - - - 29.0-32.0 1.7-2.3 1.5-2.5 0.05 max 1.0 max



Steel Grade Temper Tensile Strength Mpa Yeild Strength Mpa

Elongation

%

Expansion

Requirement

%

Grain Size

mm

Min Min Max Min Min Min Max
C70400 061 260 85 - - 30 0.01 0.045
H55 275 205 - - 20 - -
C70600 061 275 105 - - 30 0.01 0.045
H55 310 240 - - 20 - -
C71500 061 360 125 - - 30 0.01 0.045
HR50A 495 345 - 12 20 - -
HR50B 495 345 - 15 20 - -
C71640 061 435 170 - - 30 0.01 0.045
HR50 560 400 - - 20 - -

Application:

Chillers

Heat Condensers & Exchangers

Power Plants

Refineries

Desalination Plants

Ship Building & Ship Repairs

Defence

Mark: As required.
