Product Details:
|
| Material: | Stainless Steel ,carbon Steel | Dimensions: | Customzied |
|---|---|---|---|
| Color: | Metal | Type: | Structured Packing |
| Usage: | Desulfurization | Application: | Desulfurize Tower Packing |
| High Light: | distillation column internals,plate distillation column |
||

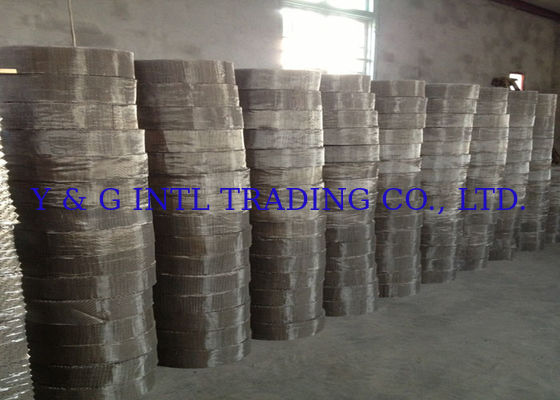

Metal Wire Mesh Structured Packing Column Without Channeling Of Liquid
Metal Wire Mesh structured columns packing consist of proprietary designed metal wire mesh with corrugated sheets which are aligned and placed vertically. The wire structures slopes are reversed in other sheets stacked with alternating 90 degree orientation of each layer resulting in inclined flow passages and a relatively high surface area. This allow thin liquid films to be continuously spread across the tower as liquid flows through the packing. Capillary action and high surface areas result in maximum exposure to high mass transfer efficiency.
Materials: Stainless Steel 304,304L, 316, 316L, other materials including Carbon steel, Aluminium, Copper bronze etc, further materials available on request.
Technical data:
| TYPE |
Peak height mm |
Surface Area (m2/m3) |
theoretical plate number 1/m | Void (%) |
(Pressure Drop) Mpa/m |
Dry packing (kg/m3)0.5 |
| GP-1 | 12 | 250 | 2.5-3.0 | 97 | 1.05×10-4 | 2.5-3.5 |
| GP-2 | 6.3 | 500 | 4.5-5.5 | 95 | 3.0×10-4 | 2 |
| GP-3 | 4.3 | 700 | 8-10 | 87 | 4.5-6.5×10-4 | 1.3-2.4 |
| GP-4 | Insert | 1000 | 15.0-17.0 | 75 | 5.0-7.1×10-4 | 0.9-1.4 |
Application: Often used in the difficult separation of heat sensitive material, atmospheric distillation, vacuum distillation and absorption processes.
