Product Details:
|
| Material: | Alumina Ceramic | Alumina Content: | 13% ~23% Or Specified |
|---|---|---|---|
| Acid Resistance (%): | >99.6 | Size: | 6mm,10mm,16mm,25mm,40mm, 50mm, 80mm Or As Required. |
| Thickness: | 0.5mm-30mm | Purity: | 95%-99.7% |
| Density: | 3.6-3.9g/cm3 | Application: | Industrial Ceramic |
| High Light: | ceramic structured packing,ceramic saddle packing |
||
Open - Hole Ring Packing Ceramic Random Packing Good Thermal Shock Resistance

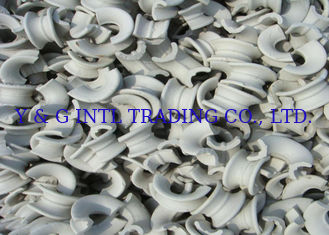

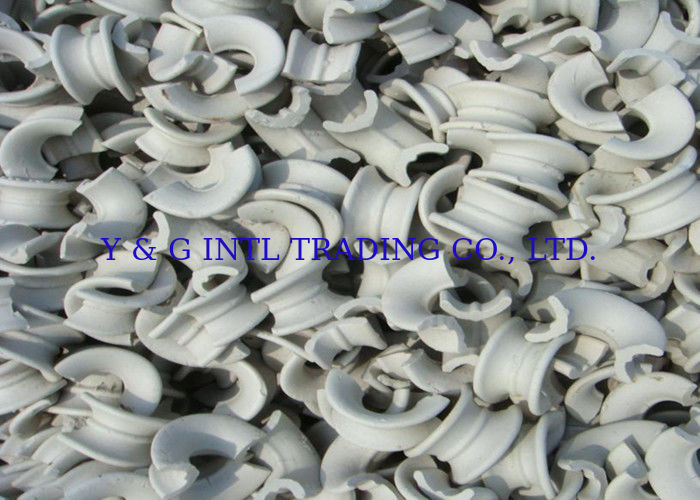

Ceramic Saddles (equivalent to Koch-Glitsch CERAMIC INTALOX SADDLES ) are between the ring shape and the shape of the saddle, and therefore maintain both their advantages, this structure is conducive to the liquid gas distribution. Ceramic saddles are most frequently used high-performance packing and exhibit advantages for most applications in comparison with other shapes. Their smooth surface imparts a high chemical resistance and provides with a high level of stability. Due to their simple form, ceramic saddles can be manufactured by continuous extrusion method and can be produced at a relatively low cost.
Specification of Cermic Saddles:
| Diameter | Size (mm) | Surface Area (m2/m3) |
Void (%) | Number (pcs/m3) |
Bulk density (kg/m3) |
Dry packing (factor m-1) |
| 16 | 16X12X2.0 | 450 | 70 | 382000 | 710 | 1311 |
| 25 | 25X19X3.0 | 250 | 74 | 84000 | 610 | 617 |
| 38 | 38X30X4.0 | 164 | 75 | 25000 | 590 | 389 |
| 50 | 50X40X5.0 | 142 | 76 | 9300 | 560 | 323 |
| 76 | 76X57X9.0 | 92 | 78 | 1800 | 520 | 194 |
Features: excellent acid resistant properties, the ability of reisting various inorganic acid, organic acids and organic solvents corrosion(except HF acid), high temperature in a variety of occasions, c can be used at various high temperatures.
Applications: Ceramic Saddles are widely used in Scrubbers, Drying Towers, Tail Gas Scrubbers, Impasse Towers, absorption tower, cooling tower, scrubber, regeneration tower. Also widely used as heat transfer media inRegenerative Thermal oxidizers(RTO).
