Product Details:
|
| Materials: | CS, SS, Copper, Titanium | Diameter: | 12~120mm |
|---|---|---|---|
| Thickness: | 0.25~3mm | Bulk Weight: | 280-420kg/m3 |
| Life Span: | 3 Years | Application: | Industry,tower Packing |
| High Light: | metal tower packing,metal raschig ring |
||

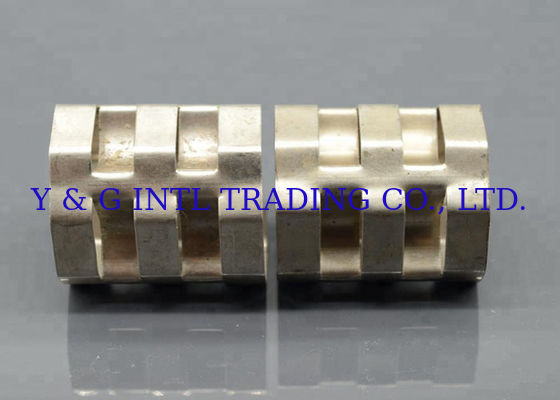

Good Structural Uniformity VSP Rings Non - Nesting Structure With High Extensive Point
VSP Rings have reasonable Geometric symmetry, good structural uniformity and High porosity. The surface of the packing tower is continuous and not disconnecting, evenly distributed in space. Compared with Pall Ring, its flux can increase 15-30 percent, and the pressure can reduce 20-30 percent.
During plant operation Metal VSP Rings create gas/liquid contact on easily wettable surfaces and promote the formation of droplets as the liquid cascades down the packed bed. This ensures good liquid mixing and consistent and uniform distribution. This open non-nesting structure creates high efficiency and a very low pressure drop.
Specification:
|
Diameter (mm) |
H x T (mm) |
Number Per M3 |
Surface (M2/M3) |
Weight (Kgs/M3) |
Free Vol (%) |
Dry packing factor (m-1) |
| Φ 25 | 25*0.5 | 59200 | 250 | 420 | 0.93 | 310 |
| Φ 38 | 38*0.6 | 14000 | 138 | 296 | 0.947 | 163 |
| Φ 50 | 50*0.8 | 7000 | 121 | 350 | 0.95 | 144 |
| Φ 76 | 76*1.0 | 1950 | 75 | 280 | 0.95 | 86 |
Applications: various separation,absorption and desorption equipment,normal atmospheric pressure reduced and vacuum distillation plant,decarburateing and desulfuration systems,ethyl benzene separation,and Iso-octane/toluene systems.
