Product Details:
|
| Material: | C12200 C11000 | Standard: | ASTM B280, B75, B111 |
|---|---|---|---|
| Application: | Air Conditioning And Refrigeration | OD: | 4-22mm |
| Wall Thickness: | 0.41-1.2mm Or Customised | Packing: | Exporting Package/wooden Box /as Requirement. |
| High Light: | seamless copper pipe,copper round tube |
||

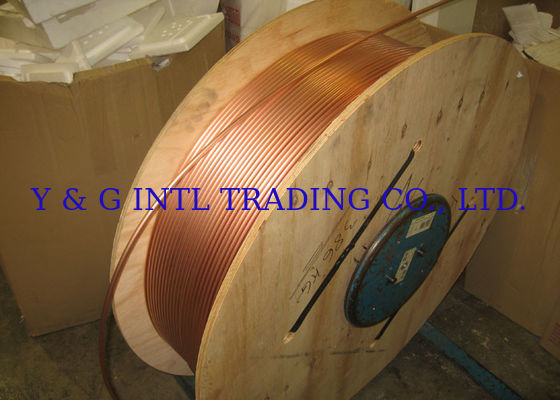

Copper Tube Copper Coil Tubing , Heat Preservation Soft Copper Pipe Roll C11000 C12000 , Seamless Copper Pipe
Dimensions:
Outer diameter:5-350mm
Wall thickness: 0.5-50mm.
according to the buyers' requirements
Arsenical Brass tube Symbol:
| Grade | USA | UK | Germany | Japan |
| China GB | UNS | EN | DIN | JIS H |
| T2 | C11000 | Cu-ETP | E-Cu58 | C1100 |
| TP2 | C12200 | Cu-DHP | SF-CU | C1220 |
Specification:
| Size | |
| Specifications (mm) | Wall thickness (mm) |
| 3.8 | 0.28~0.60 |
| 4.76 | 0.28~1.0 |
| 5 | 0.25~1.0 |
| 6.35 | 0.28~1.50 |
| 7~7.94 | 0.28~1.50 |
| 9~9.52 | 0.26~1.50 |
| 12~12.7 | 0.34~1.50 |
| 15.88~16 | 0.41~1.80 |
| 19.05 | 0.71~2.0 |
| 22.22 | 0.89~2.0 |
| 28.58 | 1.2~2.0 |
Application:Copper pipe and tube is widely used in Water tubes, condenser,evaporator, and heat ex-changer tubes; air conditioning and refrigeration, gas,heater, and oil burner lines; plumbing pipe and steam tubes; brewery and distillery tubes; gasoline, hydraulic, and oil lines; rotating bands etc.
Mark: As required.
