Product Details:
|
| Material: | Titanium Gr. 1 | Standard: | ASTM B337,B338 |
|---|---|---|---|
| Technique: | Seamless,Welded | OD: | 3~114mm |
| Wall Thickness: | 1~6mm | Surface Treatment: | Varnish, Oil-dip, Passivation, Phosphating, Shot Blasting |
| Delivery Status: | Annealed, Normalized, Normalized+Tempered, Etc | ||
| High Light: | small diameter titanium tubing,titanium alloy tube |
||

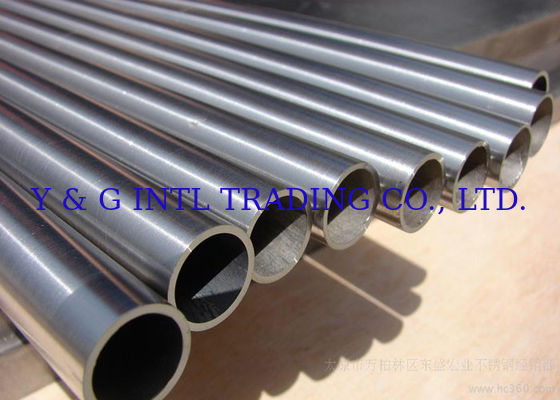

ASTM B337 B338 Titanium Alloy Pipe Seamless / Welded Grade 1 Condenser Pipe Thin Wall
Product Standard: ASTM B337 B338 ASTM B 861-2005
Grades: Grade 1.
Characteristics:
Ti Grade 1 is the softest titanium with the highest ductility, good cold formability which gives Ti Grade 1 an excellent resistance from mild to high oxidization.
Application:
Chemical processing
Chlorate manufacturing
Dimensional stable anodes
Desalination
Architecture
Medical industry
Marine industry
Automotive parts
Airframe structure
Chemical composition & Mechanical properties:
| Grade | Chemical composition | ||||||||||||
| 1 | O | N | C | H | Fe | AL | V | Ni | Mo | Pd | Others | Residuals | Ti |
| 0.18Max. | 0.03Max | 0.08Max | 0.015Max. | 0.20Max | 0. 4Max. | Bal | |||||||
| Grade | Tensile strenght (mpa, min) | Yield strength (0.2% offset mpa, min) | Elongation (%, min) | Density / weight (g / cm3 / kg) |
| 1 |
35 KSI min (240 MPa min )
|
25-45 KSI (170-310 MPa )
|
24 | / |
Mark: As required.
Inspection and Test: chemical composition test, mechanical properties test(tensile, yield, elongation), process properties test(flatting, flaring, bending, hardness, impact, etc.), appearance and size test, non-destructive inspection test, hydrostastic test.
Delivery status: Annealed, normalized, normalized+Tempered, etc.
Surface treatment: oil impregnation, paint, passivation, phosphating, shot blasting etc.
Packing: Exporting package/wooden box /as requirement.
