Product Details:
|
| Material: | Titanium Gr.2 | Standard: | B338/SB338 |
|---|---|---|---|
| Technique: | Seamless,Welded | OD: | 6~114mm |
| Wall Thickness: | 0.3~8.0mm | Surface Treatment: | Varnish, Oil-dip, Passivation, Phosphating, Shot Blasting |
| Delivery Status: | Annealed, Normalized, Normalized+Tempered, Etc | ||
| High Light: | titanium welded tubes,titanium alloy tube |
||

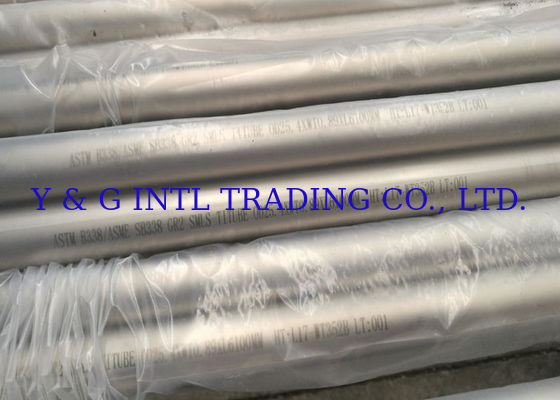

B338 Gr. 2 Seamless Titanium Tubing , 13.5mm * 0.5mm * 3000mm , 25.4mm * 1.2mm * 3000mm
Titanium Grade 2 is a pure titanium offering an excellent balance of strength and ductility. The material has good toughness and is readily weldable. It is corrosion resistant in highly oxidizing and middly reducing environments, castable and often utilized in cast valves and fittings.
Product Standard: ASTM B338 ASME SB338
Grades: Grade 2.
Characteristics:
Excellent resistant to oxidizing or mildly reducing media
Good impact properties at low temperatures
Very good resistance to corrosion and erosion by seawater and marine atmospheres
Good ductility and formability
Easy weld ability
Application:
Petrochemical
Aerospace
Medical equipment
Oil and gas
Seawater equipment
Chemical composition & Mechanical properties:
| O | N | C | H | Fe | AL | V | Ni | Mo | Pd | Others | Residuals | Ti |
| 0.25Max. | 0.03Max | 0.08Max | 0.015Max. | 0.30Max | 0. 4Max. | Bal |
| Grade | Tensile strenght (mpa, min) | Yield strength (0.2% offset mpa, min) | Elongation (%, min) | Density / weight (g / cm3 / kg) |
| 2 | 485 | 345 | 28 | 4.51 |
Mark: As required.
Inspection and Test: chemical composition test, mechanical properties test(tensile, yield, elongation), process properties test(flatting, flaring, bending, hardness, impact, etc.), appearance and size test, non-destructive inspection test, hydrostastic test.
Delivery status: Annealed, normalized, normalized+Tempered, etc.
Surface treatment: oil impregnation, paint, passivation, phosphating, shot blasting etc.
Packing: Exporting package/wooden box /as requirement.
